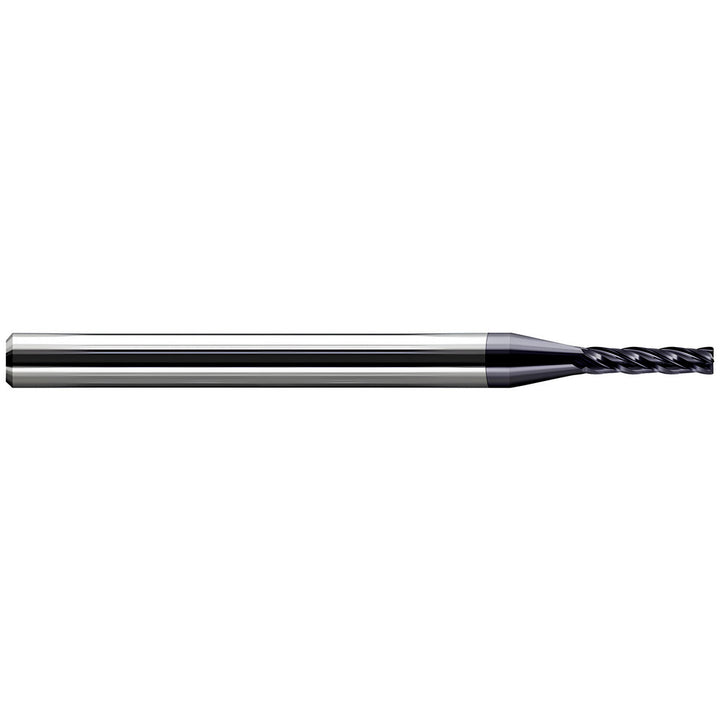

0.1000" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 964400-C3

Harvey Tool

0.1000" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 964400-C3

MFR# 964400-C3Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills

$49.74List $58.08 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 964400-C3 is a 0.1000 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 1/2 length of cut, 2-1/2 overall length. Series Miniature End Mills - Corner Radius - Long Flute; Miniature End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0100
Corner radius tolerance0.0010 to -0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Length of cut in1/2
Length typeLong
Material applicationNon-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Composite
Material removal typeFinishing
Mill diameter0.1000
Mill diameter tolerance0.0005 to -0.0005 in
Number of flutes4
Overall length in2-1/2
Overall length tolerance0.0100 to -0.0000 in
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
