Harvey Tool

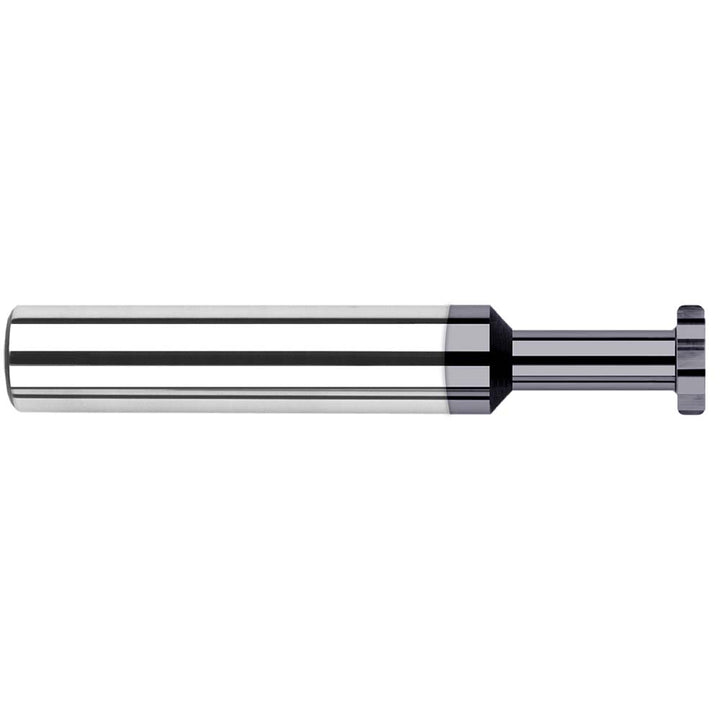

Woodruff/Keyseat Cutters & Sets - Harvey Tool 987220-C3
MFR# 987220-C3
$145.67List $170.06
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Cutter dia.3/8
CoatingAlTiN
Description
The Harvey Tool 987220-C3 woodruff/keyseat cutters & sets. Suited for steel, stainless steel, cast iron.
Specifications
Coating finishAlTiN
Connection typeShank
Corner radius0.0050
Cutter diameter in3/8
Cutter materialSolid Carbide
Cutting width in3/64
Neck diameter0.1870
Neck length0.5620
Number of teeth8
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Tooth configurationStraight
Weldon flatNo
