Harvey Tool

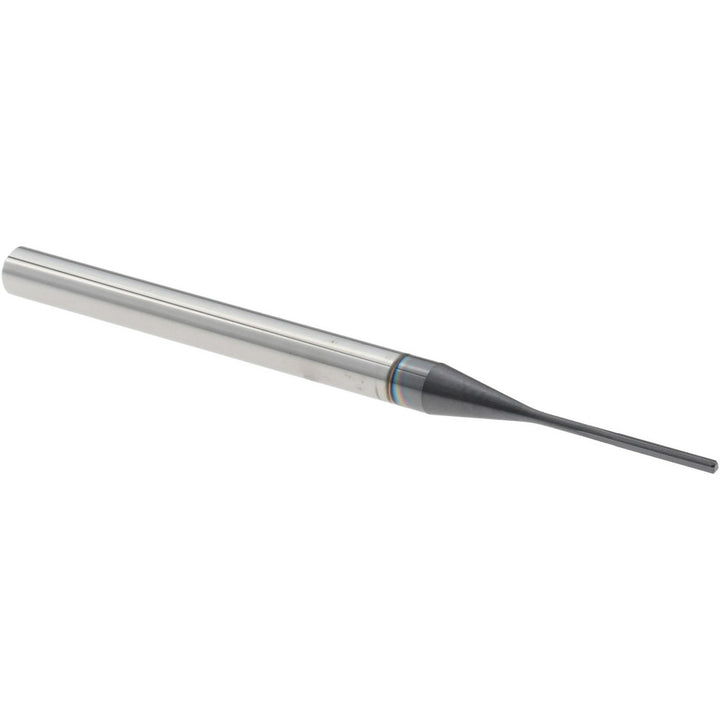

0.0320" Solid Carbide Reamer, AlTiN - Harvey Tool RSB0320-C3
MFR# RSB0320-C3Series Miniature Reamers
$61.90List $72.27
Save 14%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingAlTiN
Description
The Harvey Tool RSB0320-C3 is a 0.0320 Solid Carbide reamer with a AlTiN finish. 2 overall length.
Specifications
Additional informationMiniature Reamers; Holemaking & Threading
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
Dowel pin reamerNo
Flute length in1/4
Flute typeStraight
Number of flutes4
Overall length in2
Over under size reamerNo
Reamer diameter0.0320
Reamer diameter range0 - 0.0499
Reamer diameter tolerance+.0002 to .0000 in
Reamer diameter wire#67
Shank typeStraight-Cylindrical
Spiral directionStraight
Tool materialSolid Carbide
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
