1in" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 84771

Helical Solutions

1in" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 84771

MFR# 84771Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys

$449.37List $486.74 Save 7%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1in
Flutes4
MaterialSolid Carbide
CoatingTplus

Description

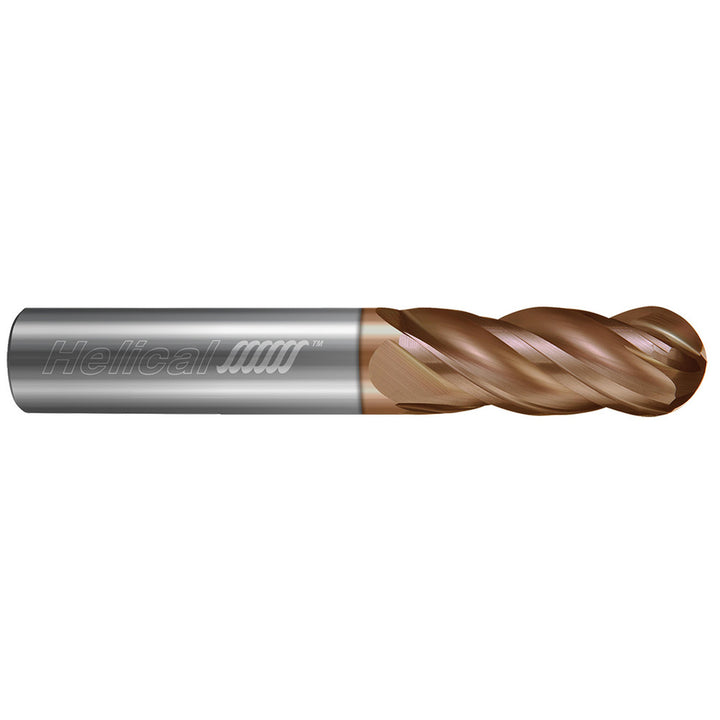

The Helical Solutions 84771 is a 1in 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 2in length of cut, 4-1/2in overall length. Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys.

Specifications

ChipbreakerNo
Coating finishTplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in2in
Length typeStandard
Manufacturers catalog number84771
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1in
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.5000
Number of flutes4
Overall length in4-1/2in
Overall length tolerance+0.0620/-0.06250 in
Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material
Reach length in2
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1in
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
