Hertel

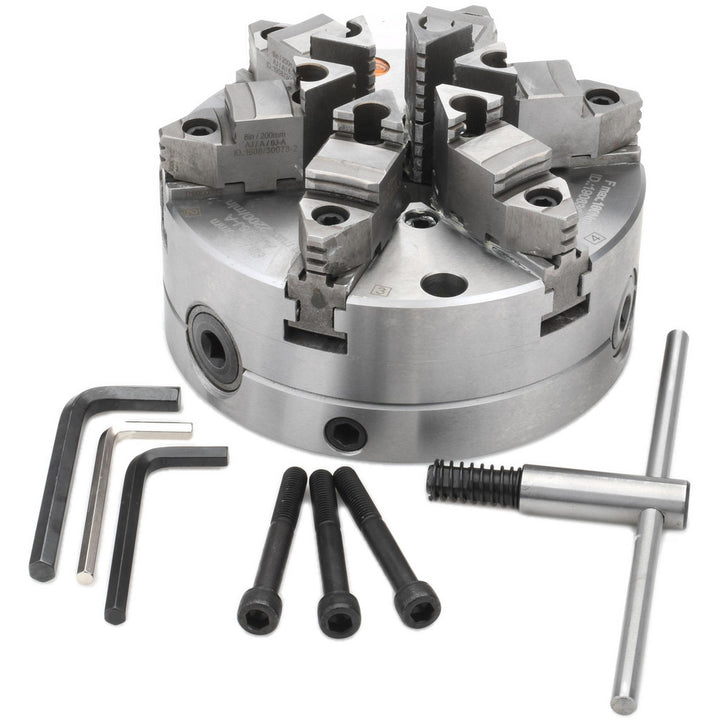

6-Jaw Lathe Chuck - Hertel 1-103-0800
MFR# 1-103-0800
$1,410.57List $1,770.62
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel 1-103-0800 is a forged steel lathe chuck.
Specifications
AdjustableYes
Body length in3-1/16
Body materialForged Steel
Chuck diameter in8
Chuck typeSelf-Centering
Jaw height in1-53/64
Maximum jaw capacity in7-7/8
Maximum rpm2200
Minimum jaw capacity in5/16
Mount typePlain Back
Number of jaws6
Reversible jawsReversible
Through hole diameter2.1654
Tir repeatability0.0004
