Hertel

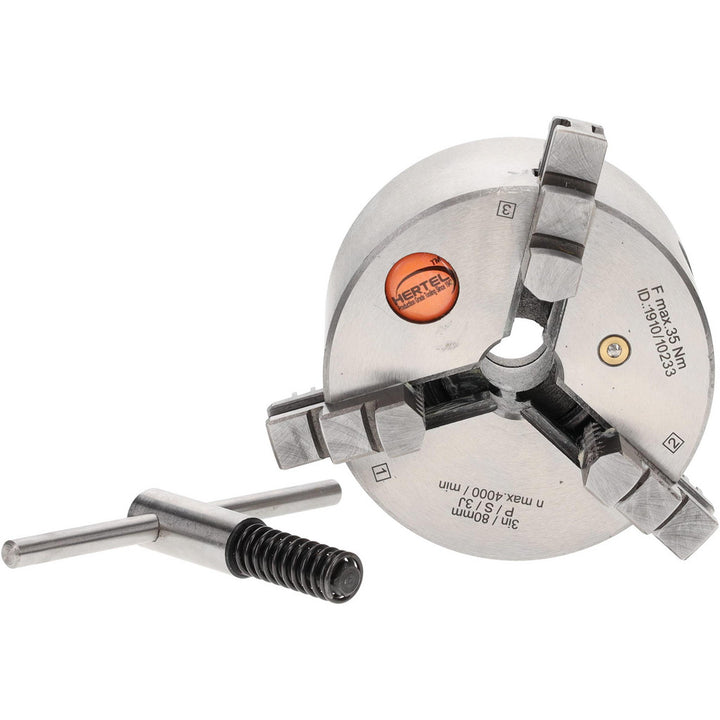

3-Jaw Lathe Chuck - Hertel 1-202-0300
MFR# 1-202-0300
$446.68List $560.70
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Hertel 1-202-0300 is a cast iron lathe chuck.
Specifications
AdjustableNo
Axial runout0.0006
Body length in1-47/64
Body materialCast Iron
Chuck diameter in3
Chuck typeSelf-Centering
Jaw height in33/64
Jaw typeSolid
Maximum jaw capacity in2-51/64
Maximum rpm4000
Minimum jaw capacity in5/64
Mount typePlain Back
Number of jaws3
Radial runout0.0008
Reversible jawsNon-Reversible
Through hole diameter0.6299
