Hertel
Toggle Clamp - Hertel CH-30607
MFR# CH-30607
$26.31List $33.02
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

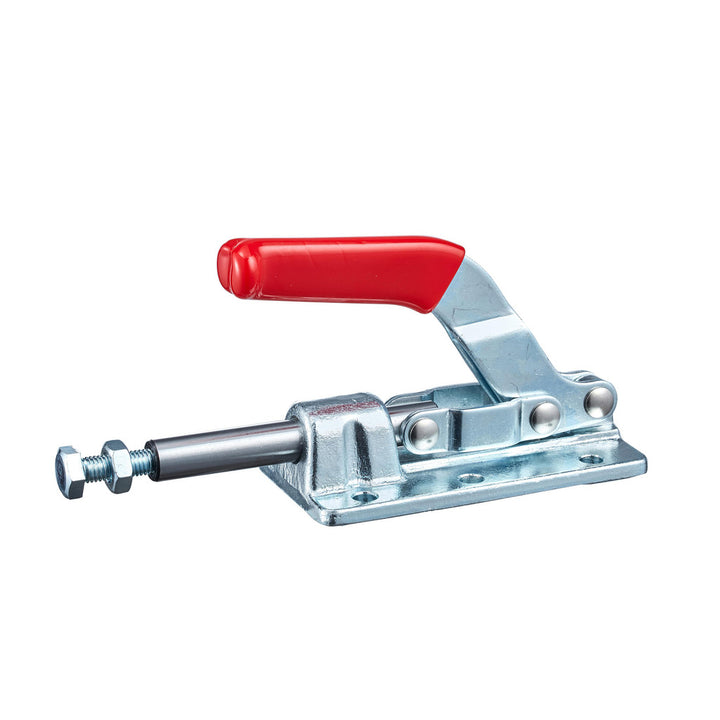

The Hertel CH-30607 is a steel toggle clamp.
Specifications
Base length4.3460
Base styleFlanged
Base width in2.2240
Clamp materialSteel
Finish coatingZinc
Handle colorRed
Handle movement degrees180
Handle styleStraight
Holding capacity kg317.51
Holding capacity lb700.00
Holding capacity n3113.74
Includes(1) Spindle; (2) Nuts
Length distance between mount holes in1.3800; 1.6200
Load capacity3114
Load capacity n3113.74
MaterialSteel
Mounting hole diameter0.2800
Number of mounting holes6
Overall height3.2680
Overall length6.0470
Plunger centerline height0.6890
Plunger diameter in1/2
Plunger shapeRound
Plunger thread sizeM8
Plunger thread styleInternal
Plunger travel1.6260
Spindle length1.9700
Width distance between mount holes1.6260
