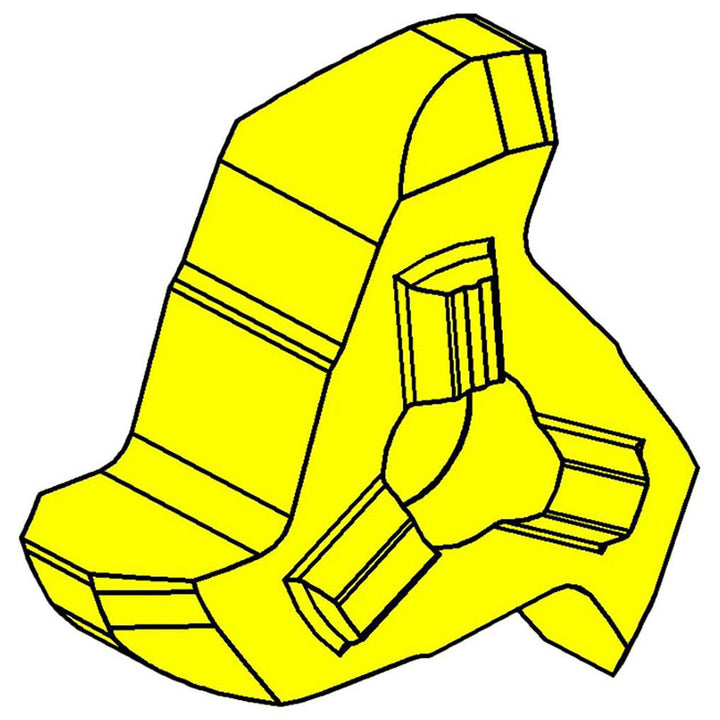

0.8540" IC Solid Carbide Insert, Grade TN35, TiN - HORN 313454500TN35

HORN

0.8540" IC Solid Carbide Insert, Grade TN35, TiN - HORN 313454500TN35

MFR# 313454500TN35Series 313

$33.78List $36.90 Save 8%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeTN35
MaterialSolid Carbide
CoatingTiN

Description

The HORN 313454500TN35 is a solid carbide indexable insert, grade TN35, TiN coated. Suited for hard material, cast iron, stainless steel, non-ferrous metal, steel, superalloys & titanium.

Specifications

Coating finishTiN
Coating processPVD
Included angle degree45
Inscribed circle0.8540
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert size45
Insert size code4545
Insert style313
Manufacturers catalog number313454500TN35
Manufacturer gradeTN35
Material applicationHard Material; Cast Iron; Stainless Steel; Non-Ferrous Metal; Steel; Superalloys & Titanium
Number of cutting edges3
Primary workpiece materialHard Material; Cast Iron; Stainless Steel; Non-Ferrous Metal; Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
Thickness0.2800
Width0.8543
