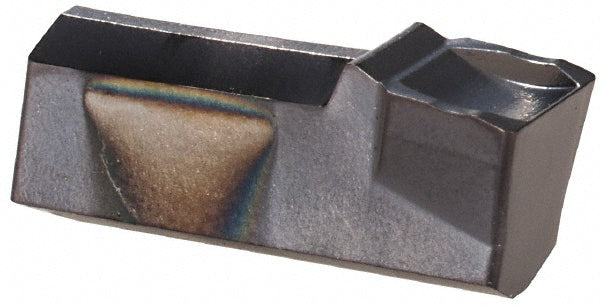

Solid Carbide Insert, Grade TF45, TiAlN - HORN S1000500E3TF45
MFR# S1000500E3TF45Series S100
$14.46List $15.80
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTF45
MaterialSolid Carbide
CoatingTiAlN
Description
The HORN S1000500E3TF45 is a solid carbide indexable insert, grade TF45, TiAlN coated. Suited for universal.
Specifications
Chip breakerE
Coating finishTiAlN
Corner radius0.0120
Cutting height0.1970
Cutting width0.1970
Full radiusNo
Insert handNeutral
Insert materialSolid Carbide
Insert seat size5
Insert size0500
Insert size code0500E3
Insert styleS100
Lead angle0
Manufacturer gradeTF45
Material gradeC7
Multi use toolNo
Overall length0.5940
Primary workpiece materialUniversal
RakePositive
Rake angle5.00
