HORN

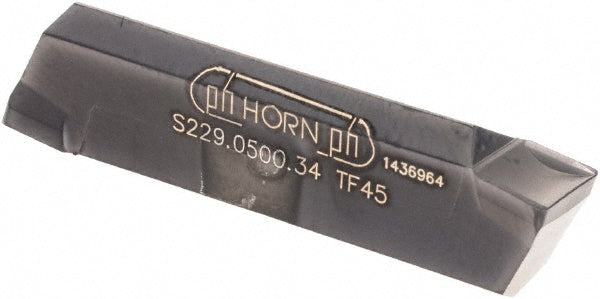

Solid Carbide Insert, Grade TF45, TiAlN - HORN S229050034 TF45
MFR# S229050034 TF45Series S229
$25.72List $28.10
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTF45
MaterialSolid Carbide
CoatingTiAlN
Description
The HORN S229050034 TF45 is a solid carbide indexable insert, grade TF45, TiAlN coated. Suited for universal.
Specifications
Coating finishTiAlN
Corner radius0.0160
Cutting height0.3150
Cutting width0.1970
Full radiusNo
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert seat size4
Insert size0500
Insert size code050034
Insert styleS229
Lead angle0
Manufacturer gradeTF45
Material gradeC7
Maximum depth of cut in1
Multi use toolNo
Overall length1.1970
Primary workpiece materialUniversal
RakePositive
Rake angle10.00
