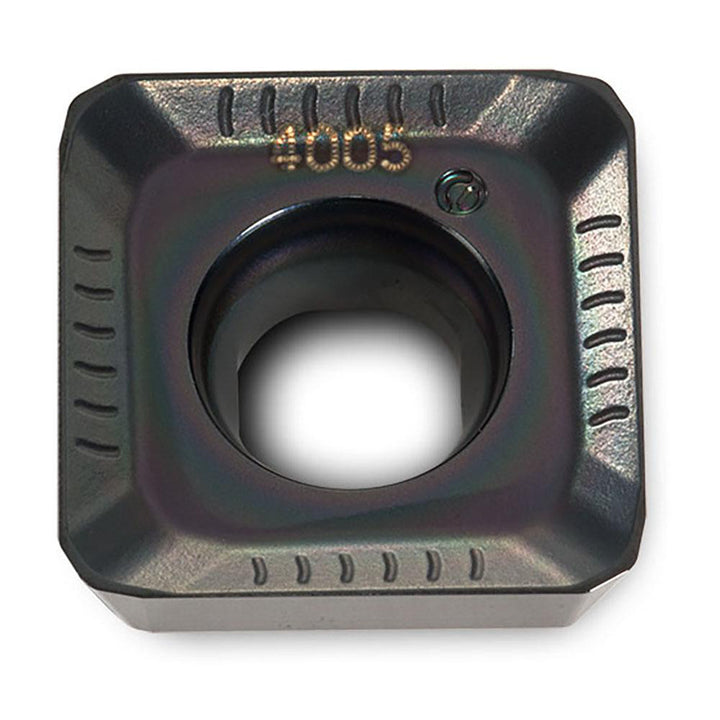

SDMS1305MDR-PH IN4035 Solid Carbide Insert, Grade IN4035, TiAlN - Ingersoll Cutting Tools 2901938

Ingersoll Cutting Tools

SDMS1305MDR-PH IN4035 Solid Carbide Insert, Grade IN4035, TiAlN - Ingersoll Cutting Tools 2901938

MFR# 2901938ISO/ANSI# SDMS1305MDR-PH IN4035Series SDMS

$31.74List $40.65 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN4035
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 2901938 is a SDMS1305MDR-PH IN4035 solid carbide indexable insert, grade IN4035, TiAlN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeSDMS1305MDR-PH K IN4035
Chip breakerPH
Coating finishTiAlN
Coating processPVD
Corner radius0.0295
Cutter series compatibility15M1P; 5M5P
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.5118
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code1305
Insert styleSDMS
Iso codeSDMS1305MDR-PH IN4035
Length0.5118
Length range0.5000 to 0.6000
Manufacturers catalog number2901938
Manufacturer gradeIN4035
Material applicationStainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2000
Thickness range0.2000 to 0.2200
Width0.5118
