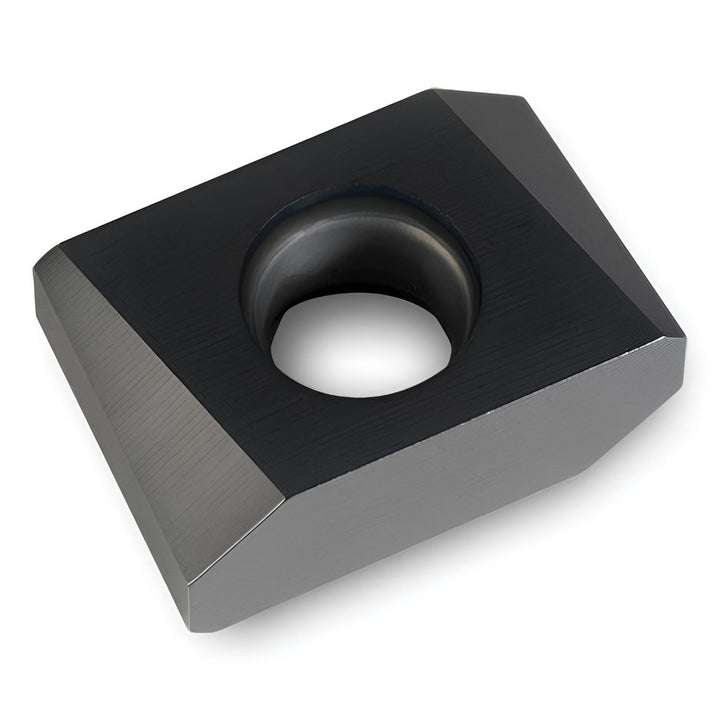

LSE324R045-S A IN4040 Solid Carbide Insert, Grade IN4040, TiAlN - Ingersoll Cutting Tools 2907255

Ingersoll Cutting Tools

LSE324R045-S A IN4040 Solid Carbide Insert, Grade IN4040, TiAlN - Ingersoll Cutting Tools 2907255

MFR# 2907255ISO/ANSI# LSE324R045-S A IN4040Series LSE

$22.02List $28.20 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeIN4040
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 2907255 is a LSE324R045-S A IN4040 solid carbide indexable insert, grade IN4040, TiAlN coated. Suited for steel, cast iron.

Specifications

Ansi codeLSE324R045-S A IN4040
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Cutter series compatibility19N1A; 9N6A
Cutting edge styleChamfered
Included angle degree90
Inscribed circle0.4100
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size32
Insert size code324
Insert styleLSE
Iso codeLSE324R045-S A IN4040
Length in5/8
Length of cut (mm)15.8800
Length range0.6000 to 0.6500
Manufacturers catalog number2907255
Manufacturer gradeIN4040
Material applicationSteel; Cast Iron
Material gradeFine Grain; Medium Grain
Maximum depth of cut0.6250
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width0.4100
