Ingersoll Cutting Tools

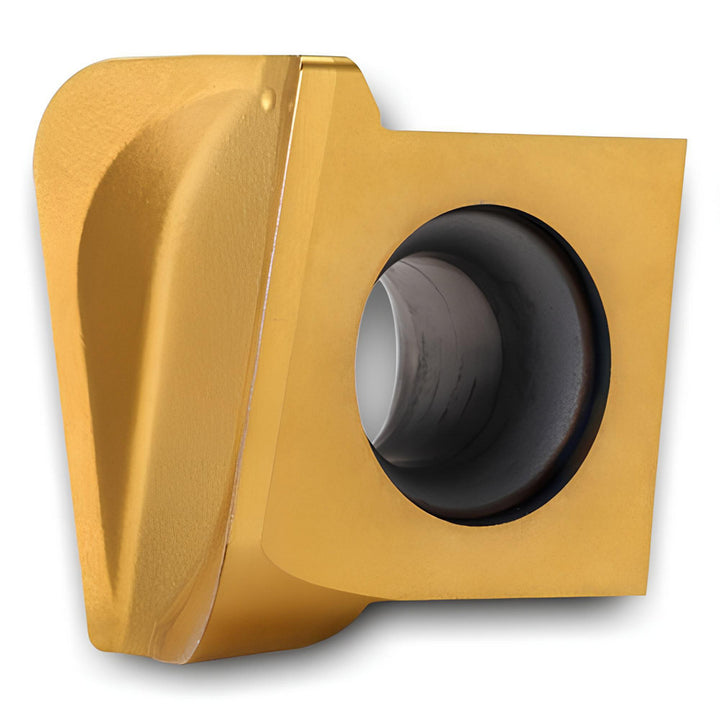

IPM426R001-ML K IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 2923913
MFR# 2923913ISO/ANSI# IPM426R001-ML K IN2530Series IPM
$25.41List $32.55
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeIrregular
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 2923913 is a IPM426R001-ML K IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeIPM426R001-ML K IN2530
Chip breakerML
Coating finishTiAlN
Coating processPVD
Corner radius0.0300
Cutter series compatibility2XJ3J
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.5950
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size42
Insert size code426
Insert styleIPM
Iso codeIPM426R001-ML K IN2530
Length0.6170
Length of cut (mm)15.6700
Length range0.6000 to 0.6500
Manufacturers catalog number2923913
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.6170
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle11
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/8
Thickness range0.3500 to 0.5000
Width0.5950
