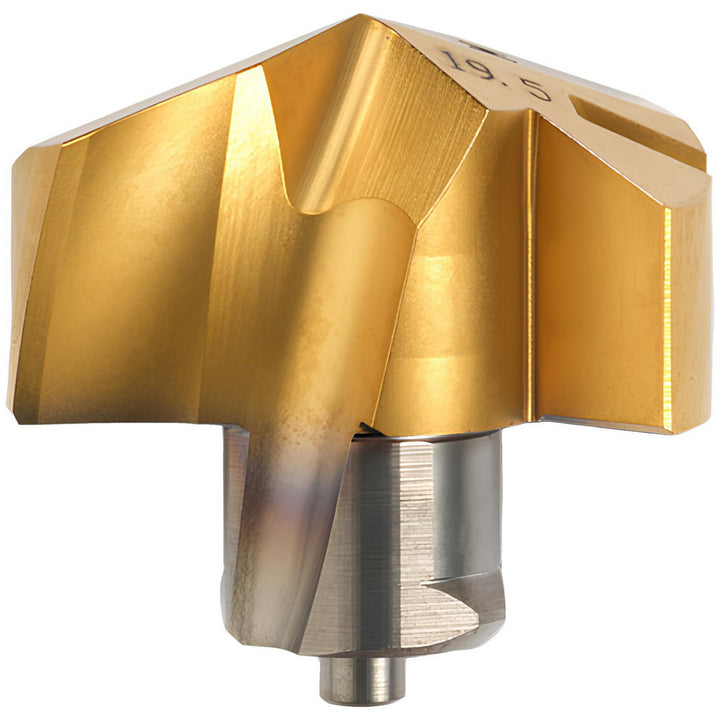

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 4209579
MFR# 4209579Series TMA
$88.75List $110.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 4209579 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for stainless steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter0.3543
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1750
Height (mm)6.00
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size9
Iso numberTMA0900R01 IN2505
Manufacturer gradeIN2505
Material gradeM15; M35
Number of flutes2
Overall length projection0.2280
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StandardsANSI
StyleTMA
Tip materialSolid Carbide
