Ingersoll Cutting Tools

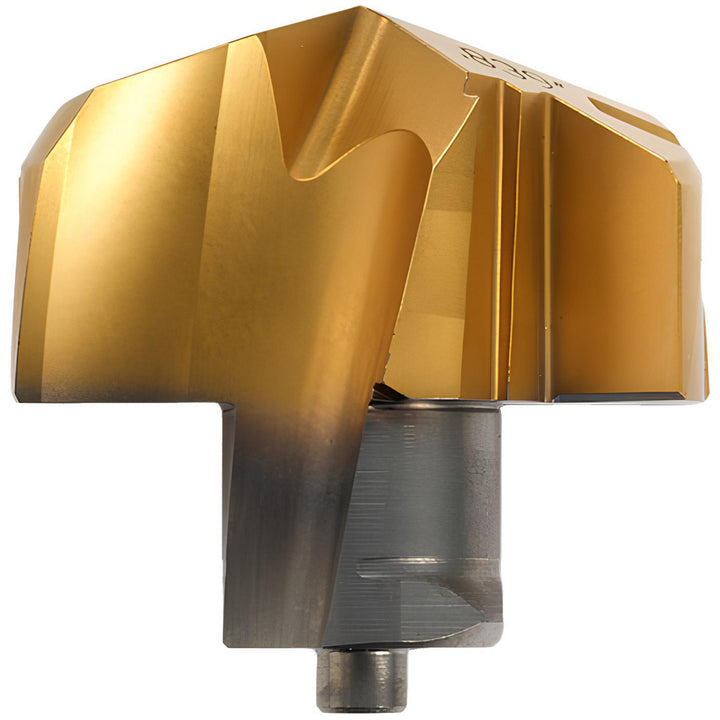

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 4209871
MFR# 4209871Series TKA
$96.02List $119.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 4209871 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for cast iron.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter (mm)10.00
Drill point angle140
Flute length (mm)4.00
Flute typeHelical
Functional length0.1470
Height (mm)6.00
Included angle degree140
Insert geometryK
Insert holding methodClamp
Insert seat size10
Iso numberTKA1020R01 IN2505
Manufacturer gradeIN2505
Material gradeSubmicron
Number of flutes2
Overall length projection0.2440
Point typeStandard
Primary workpiece materialCast Iron
Spiral typeRegular Spiral
StandardsANSI
StyleTKA
Tip materialSolid Carbide
