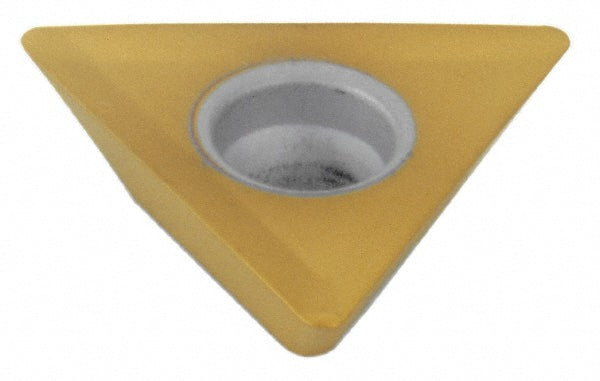

TFLT15T308N Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5100414

Ingersoll Cutting Tools

TFLT15T308N Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5100414

MFR# 5100414ISO/ANSI# TFLT15T308NSeries TFLT

$25.03List $31.55 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN2530
MaterialCarbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5100414 is a TFLT15T308N carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeTFLP32-01 J
ChipbreakerTF
Coating finishTiAlN
Coating processPVD
Compatible drill styleFAK
Corner radius0.0310
Cutting directionNeutral
Included angle degree60
Inscribed circle0.3750
Insert materialCarbide
Insert size15T308
Insert size code15
Insert styleTFLT
Iso codeTFLT15T308N
Length0.5906
Manufacturer gradeIN2530
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
RakePositive
ShapeTriangle
Thickness0.1560
Width0.5906
