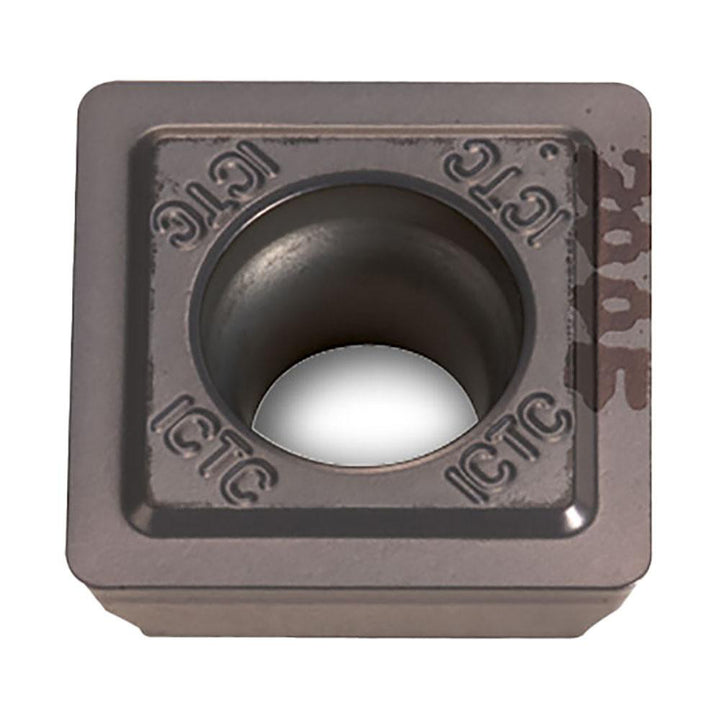

SHLT110408N-FS Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5101003

Ingersoll Cutting Tools

SHLT110408N-FS Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5101003

MFR# 5101003ISO/ANSI# SHLT110408N-FSSeries SHLT-N-FS

$20.61List $25.95 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN2005
MaterialCarbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5101003 is a SHLT110408N-FS carbide indexable insert, grade IN2005, TiAlN coated. Suited for steel, cast iron, stainless steel, super-alloys & titanium, hard material.

Specifications

Ansi codeSHLT110408N-FS
ChipbreakerFS
Coating finishTiAlN
Coating processPVD
Compatible drill style15C; 15S; DHU
Corner radius0.0310
Cutting directionNeutral
Included angle degree90
Inscribed circle0.4350
Insert materialCarbide
Insert size110408
Insert size code11
Insert styleSHLT
Iso codeSHLT110408N-FS
Length0.4350
Manufacturer gradeIN2005
Material gradeC2
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Stainless Steel; Super-Alloys & Titanium; Hard Material
RakePositive
ShapeSquare
Thickness0.1810
Width0.4350
