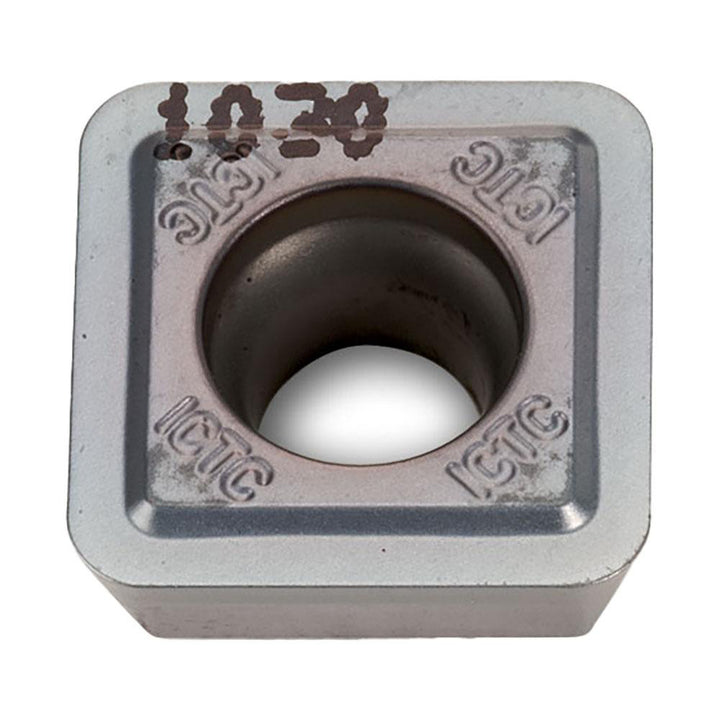

SHLT110416N-FS Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5101006

Ingersoll Cutting Tools

SHLT110416N-FS Carbide Insert, Grade IN1030, TiCN - Ingersoll Cutting Tools 5101006

MFR# 5101006ISO/ANSI# SHLT110416N-FSSeries SHLT-N-FS

$20.61List $25.95 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN1030
MaterialCarbide
CoatingTiCN

Description

The Ingersoll Cutting Tools 5101006 is a SHLT110416N-FS carbide indexable insert, grade IN1030, TiCN coated. Suited for steel, stainless steel, super-alloys & titanium.

Specifications

Ansi codeSHLT110416N-FS
ChipbreakerFS
Coating finishTiCN
Coating processPVD
Compatible drill style15C; 15S; DHU
Corner radius0.0600
Cutting directionNeutral
Included angle degree90
Inscribed circle0.4350
Insert materialCarbide
Insert size110416
Insert size code11
Insert styleSHLT
Iso codeSHLT110416N-FS
Length0.4350
Manufacturer gradeIN1030
Material gradeC1; C2; C6
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Super-Alloys & Titanium
RakePositive
ShapeSquare
Thickness0.1810
Width0.4350
