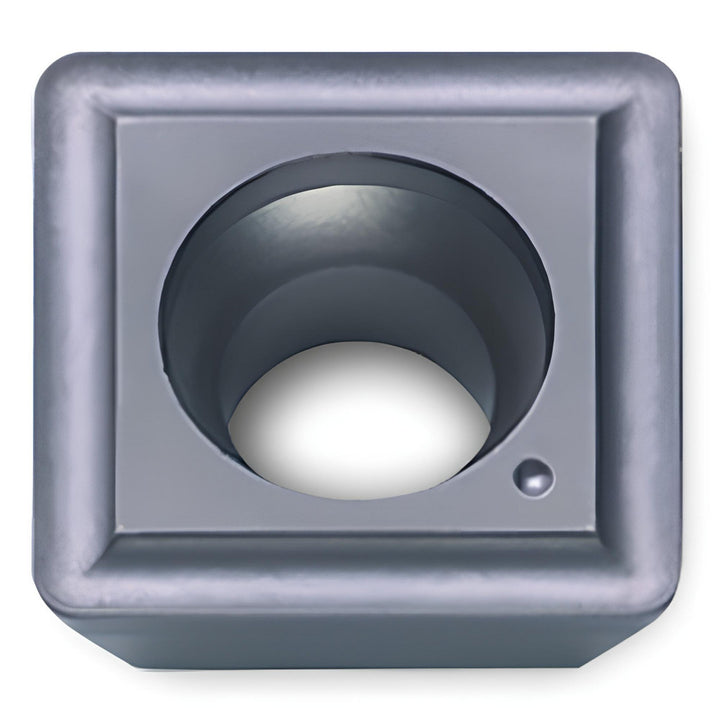

SHLT090408N-PH1 IN6520 Solid Carbide Insert, Grade IN6520, Al2O3 - Ingersoll Cutting Tools 5101035

Ingersoll Cutting Tools

SHLT090408N-PH1 IN6520 Solid Carbide Insert, Grade IN6520, Al2O3 - Ingersoll Cutting Tools 5101035

MFR# 5101035ISO/ANSI# SHLT090408N-PH1 IN6520Series SHLT

$16.41List $20.65 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeIN6520
MaterialSolid Carbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 5101035 is a SHLT090408N-PH1 IN6520 solid carbide indexable insert, grade IN6520, Al2O3 coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSHLT090408N-PH1 IN6520
Chip breakerPH1
Coating finishAl2O3
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityQ; QA; QF
Cutting edge styleCorner Rounded
Included angle degree90
Inscribed circle0.3860
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size09
Insert size code090408
Insert styleSHLT
Iso codeSHLT090408N-PH1 IN6520
Length0.3860
Length range0.3200 to 0.4000
Manufacturers catalog number5101035
Manufacturer gradeIN6520
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeC3; C5
Maximum depth of cut0.3550
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1690
Thickness range0.1500 to 0.1750
Width0.3860
