Ingersoll Cutting Tools

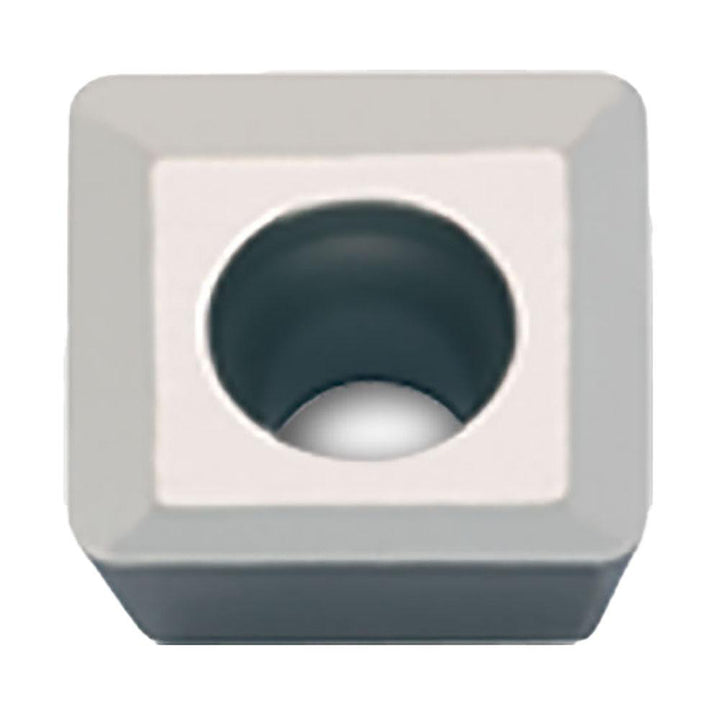

SHGT110408-HP Carbide Insert, Grade IN10K - Ingersoll Cutting Tools 5101042
MFR# 5101042ISO/ANSI# SHGT110408-HPSeries SHGT-HP
$20.42List $25.70
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeIN10K
MaterialCarbide
Description
The Ingersoll Cutting Tools 5101042 is a SHGT110408-HP carbide indexable insert, grade IN10K. Suited for non-ferrous metal.
Specifications
Ansi codeSHGT110408-HP
ChipbreakerHP
Coating processUncoated
Compatible drill styleQ
Corner radius0.0300
Included angle degree90
Inscribed circle0.4530
Insert materialCarbide
Insert size110408
Insert size code11
Insert styleSHGT
Iso codeSHGT110408-HP
Length0.453
Manufacturer gradeIN10K
Material gradeFine Grain
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal
RakePositive
ShapeSquare
Thickness0.189
Width0.453
