Ingersoll Cutting Tools

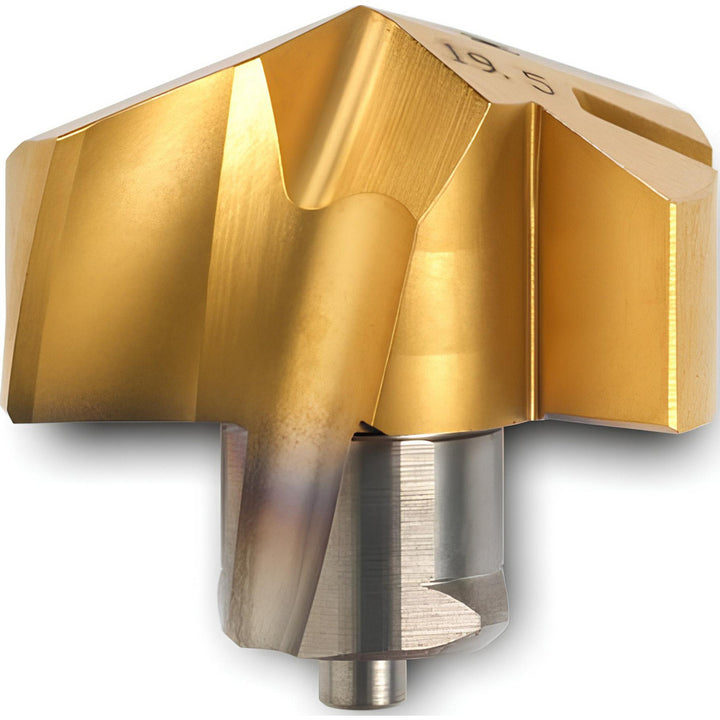

Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5120136
MFR# 5120136Series TMA
$102.47List $127.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2505
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5120136 is a carbide indexable insert, grade IN2505, TiAlN coated. Suited for stainless steel.
Specifications
ApplicationsCoolant-Thru; Drilling; Spot Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in17/32
Drill point angle140
Flute length (mm)6.00
Flute typeHelical
Functional length0.2190
Height0.299
Included angle degree140
Insert geometryM
Insert holding methodClamp
Insert seat size13.5
Iso numberTMA1350R01 IN2505
Manufacturer gradeIN2505
Material gradeM15; M35
Number of flutes2
Overall length projection0.2990
Point typeStandard
Primary workpiece materialStainless Steel
Spiral typeRegular Spiral
StandardsANSI
StyleTMA
Tip materialSolid Carbide
