Ingersoll Cutting Tools

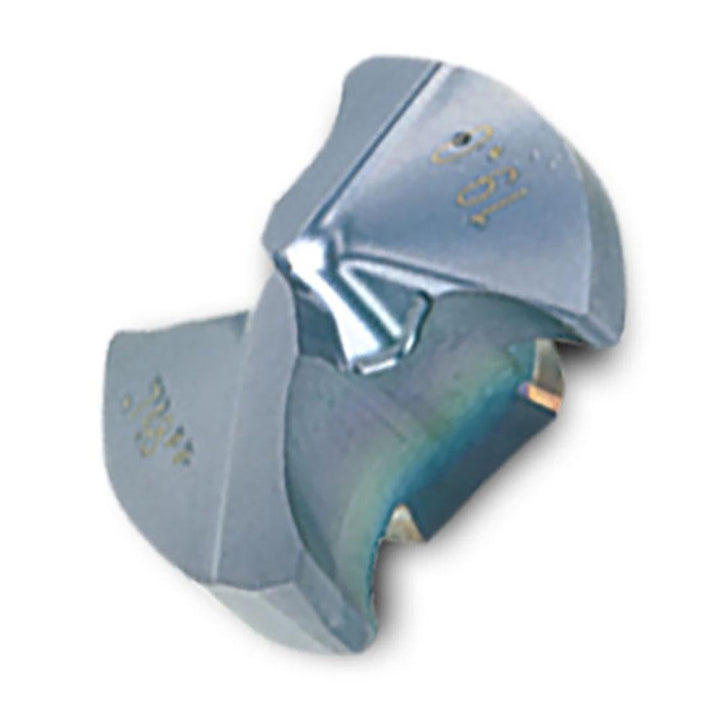

Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5140136
MFR# 5140136Series YAB
$152.49List $189.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeIN2005
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5140136 is a carbide indexable insert, grade IN2005, TiAlN coated. Suited for universal.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Cutting diameter (mm)23.40
Drill point angle140
Functional length0.2420
Height0.409000
Included angle degree140
Insert holding methodTwist
Insert seat size23
Iso numberYAB2340R01
Manufacturer gradeIN2005
Material gradeMicro Grain
Number of flutes2
Overall length projection (mm)0.41
Point angle140
Primary workpiece materialUniversal
Tip materialSolid Carbide
