SHLT090408N-PH1 Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5140193

Ingersoll Cutting Tools

SHLT090408N-PH1 Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5140193

MFR# 5140193ISO/ANSI# SHLT090408N-PH1Series SHLT-N-PH1

$18.79List $23.65 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeIN2005
MaterialCarbide
CoatingTiAlN

Description

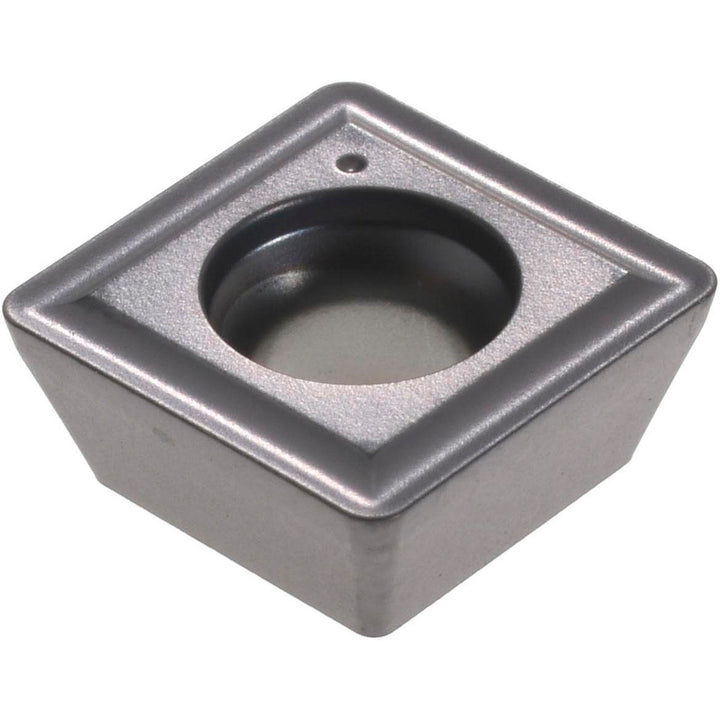

The Ingersoll Cutting Tools 5140193 is a SHLT090408N-PH1 carbide indexable insert, grade IN2005, TiAlN coated. Suited for steel, cast iron, stainless steel, superalloys & titanium, hard material.

Specifications

Ansi codeSHLT090408N-PH1
ChipbreakerPH1
Coating finishTiAlN
Coating processPVD
Compatible drill styleQ
Corner radius0.0300
Included angle degree90
Inscribed circle0.3860
Insert materialCarbide
Insert size090408
Insert size code09
Insert styleSHLT
Iso codeSHLT090408N-PH1
Length0.386
Manufacturer gradeIN2005
Material gradeC2
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
ShapeSquare
Thickness0.175
Width0.386
