Ingersoll Cutting Tools

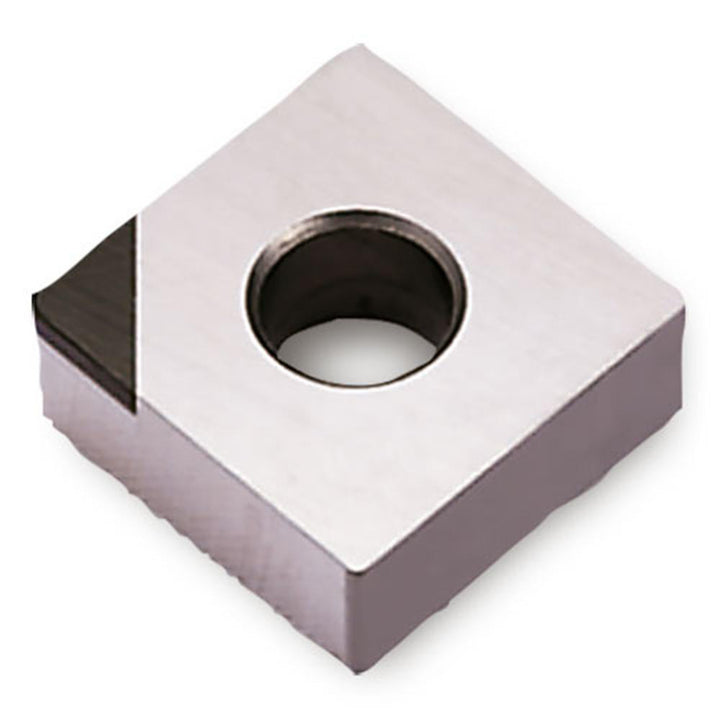

CNGA120404LS4 TB670 Cubic Boron Nitride (CBN) Insert, Grade TB670 - Ingersoll Cutting Tools 5403039
MFR# 5403039ISO/ANSI# CNGA120404LS4 TB670Series CNGA
$153.43List $163.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTB670
MaterialCubic Boron Nitride (CBN)
Description
The Ingersoll Cutting Tools 5403039 is a CNGA120404LS4 TB670 cubic boron nitride (cbn) indexable insert, grade TB670. Suited for hardened steel.
Specifications
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius0.0160
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code431LS4
Insert styleCNGA
Insert thickness0.1870
Iso codeCNGA120404LS4 TB670
Manufacturer gradeTB670
Maximum depth of cut0.1020
Number of cutting edges4
Primary workpiece materialHardened Steel
RakeNegative
Relief angle0
Tolerance codeG
Width in1/2
Wiper edgeNo
