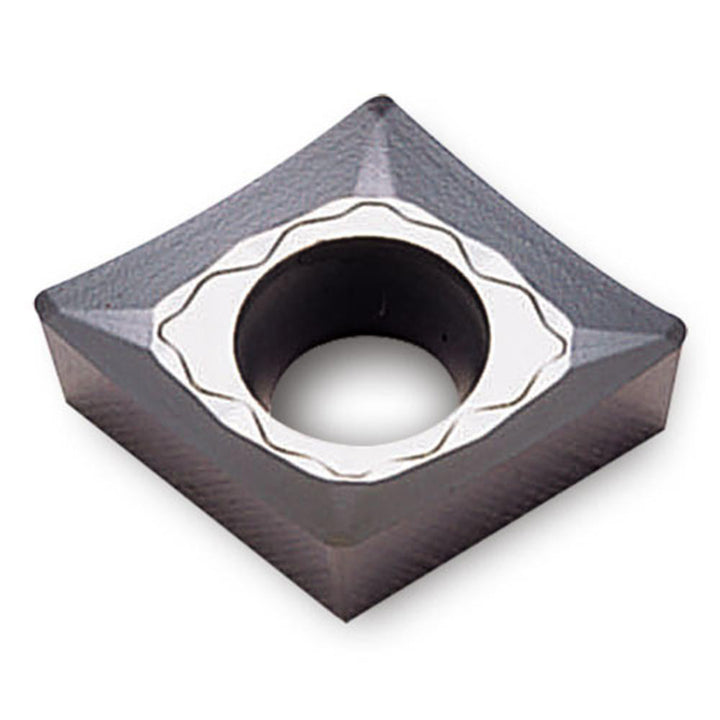

CCGT09T302FL K10 Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5512898

MFR# 5512898ISO/ANSI# CCGT09T302FL K10Series CCGT

$18.98List $24.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeK10
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5512898 is a CCGT09T302FL K10 solid carbide indexable insert, grade K10. Suited for cast iron, non-ferrous metal, super-alloys & titanium.

Specifications

Ansi codeCCGT32.50.5FLK10
Chip breakerFL
Clearance codeC
Coating processUncoated
Corner radius0.0080
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code32.50
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T302FL K10
Manufacturer gradeK10
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Super-alloys & Titanium
RakePositive
Relief angle7
StandardsISO
Tolerance codeG
Wiper edgeNo
