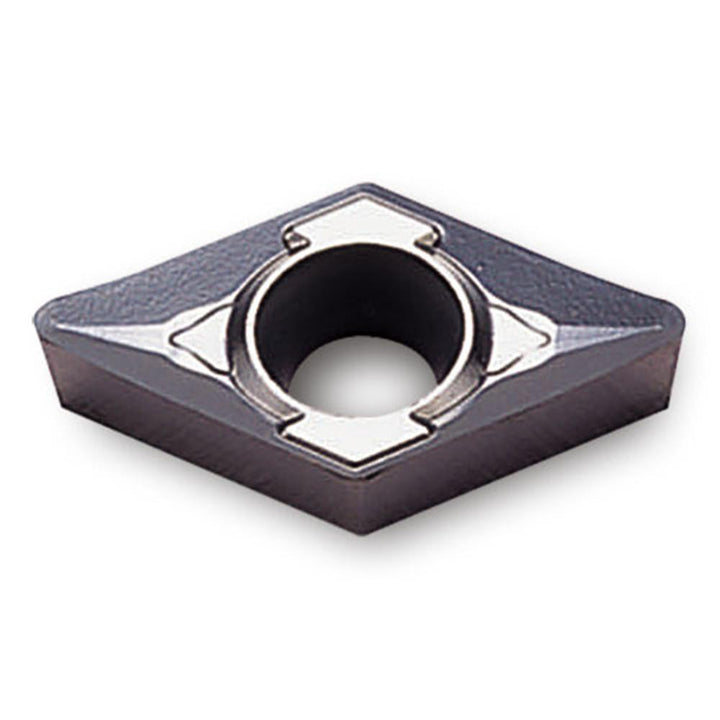

DCGT11T302FL K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5513019

Ingersoll Cutting Tools

DCGT11T302FL K10 Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5513019

MFR# 5513019ISO/ANSI# DCGT11T302Series DCGT

$20.54List $26.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeK10
MaterialCarbide

Description

The Ingersoll Cutting Tools 5513019 is a DCGT11T302FL K10 carbide indexable insert, grade K10. Suited for cast iron, non-ferrous metal, superalloy, titanium.

Specifications

Ansi insert codeDCGT32.50.5
Ansi size code32.50.5
Chip breakerFL
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating processUncoated
Corner radius0.0080
Grade characteristicsCast Iron (K) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - High Wear-Resistance; Special, Super Alloys (S) - High Wear-Resistance
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.50
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT11T302FL K10
Iso insert codeDCGT11T302
Iso size code11T302
Manufacturer gradeK10
Number of cutting edges2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloy; Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsISO
Tolerance codeG
Wiper edgeNo
