Ingersoll Cutting Tools

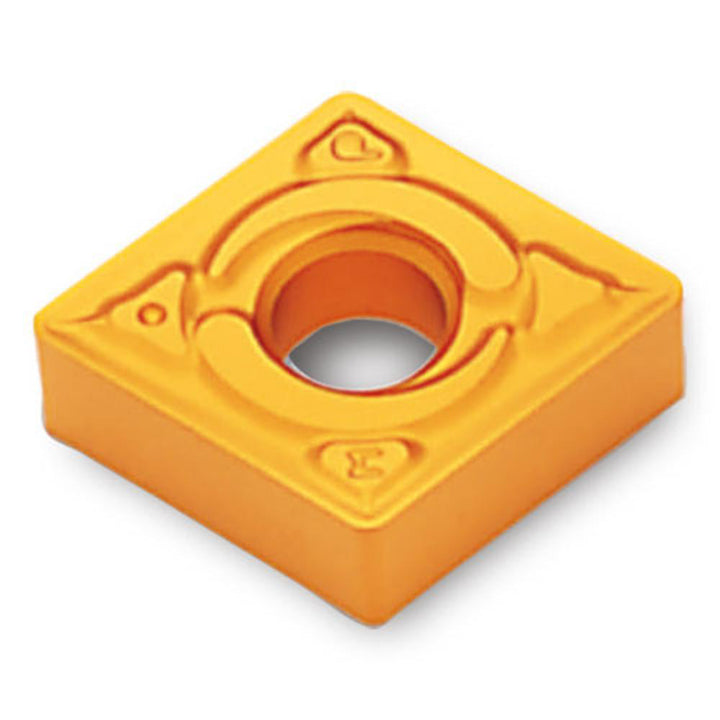

CNMG120404MP TT8020 Carbide Insert, Grade TT8020, TiCN - Ingersoll Cutting Tools 5515734
MFR# 5515734ISO/ANSI# CNMG120404MP TT8020Series CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT8020
MaterialCarbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5515734 is a CNMG120404MP TT8020 carbide indexable insert, grade TT8020, TiCN coated. Suited for stainless steel, steel, superalloy, titanium.
Specifications
Chip breakerMP
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120404MP TT8020
Manufacturer gradeTT8020
Material gradeC1; C2; C3; C4; C5; C6
Maximum depth of cut0.1570
Number of cutting edges4
Primary workpiece materialStainless Steel; Steel; Superalloy; Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Width in1
Wiper edgeNo
