Ingersoll Cutting Tools

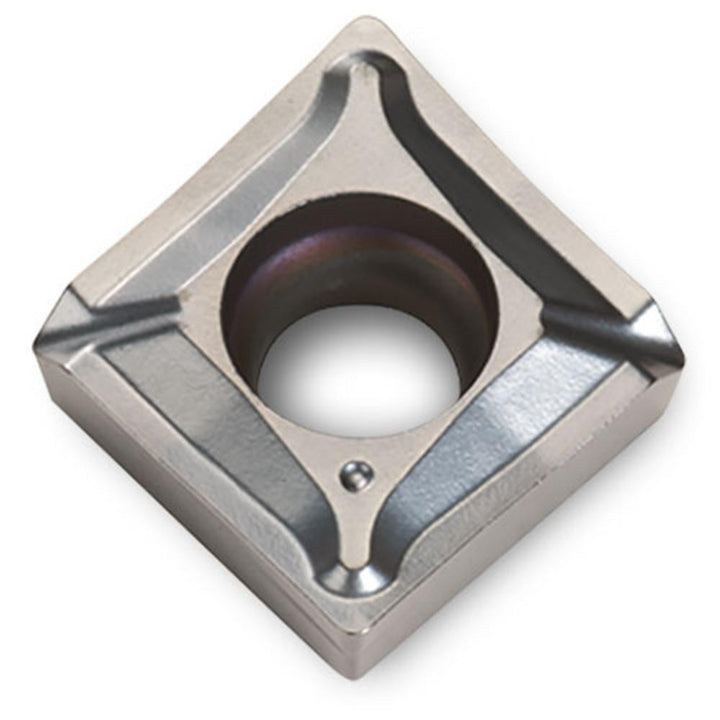

XCMT060204TC TT9030 Solid Carbide Insert, Grade TT9030, Coated - Ingersoll Cutting Tools 5515859
MFR# 5515859ISO/ANSI# XCMT060204TC TT9030Series XCMT
$21.49List $26.60
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTT9030
MaterialSolid Carbide
CoatingCoated
Description
The Ingersoll Cutting Tools 5515859 is a XCMT060204TC TT9030 solid carbide indexable insert, grade TT9030, Coated coated. Suited for steel, stainless steel, super-alloys & titanium.
Specifications
ChipbreakerTC
Coating finishCoated
Coating processPVD
Corner radius0.0160
Cutting directionNeutral
Included angle degree83.50
Inscribed circle0.2520
Insert materialSolid Carbide
Insert size code060204
Insert styleXCMT
Iso codeXCMT060204TC TT9030
Length0.2520
Manufacturer gradeTT9030
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Super-alloys & Titanium
RakePositive
Relief angle7
ShapeDiamond
Thickness0.0940
Width0.2520
