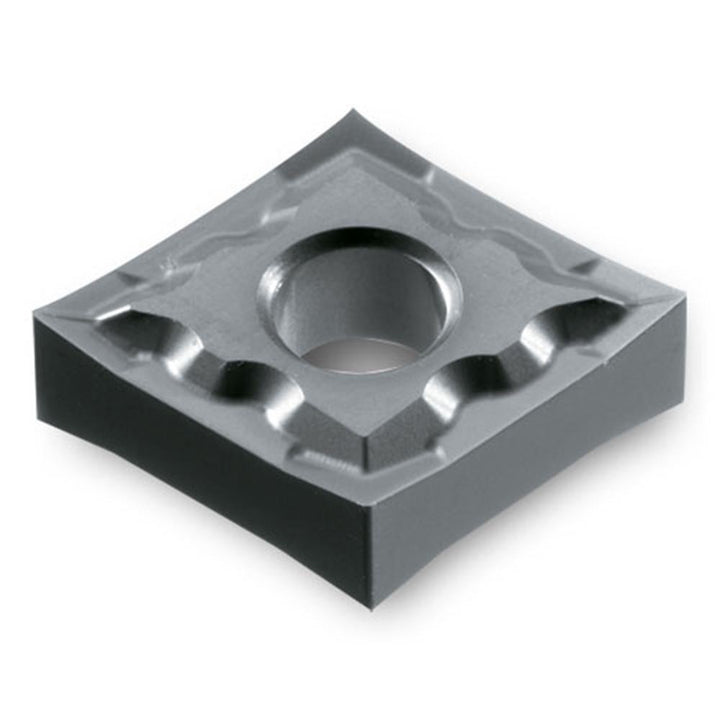

CNGG120404ML K10 Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5518012

Ingersoll Cutting Tools

CNGG120404ML K10 Solid Carbide Insert, Grade K10 - Ingersoll Cutting Tools 5518012

MFR# 5518012ISO/ANSI# CNGG120404ML K10Series CNGG

$18.13List $23.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeK10
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5518012 is a CNGG120404ML K10 solid carbide indexable insert, grade K10. Suited for cast iron, non-ferrous metal, super-alloys & titanium.

Specifications

Ansi codeCNGG431MLK10
Chip breakerML
Clearance codeN
Coating processUncoated
Corner radius0.0160
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120404ML K10
Manufacturer gradeK10
Maximum depth of cut0.1380
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeG
Width in1
Wiper edgeNo
