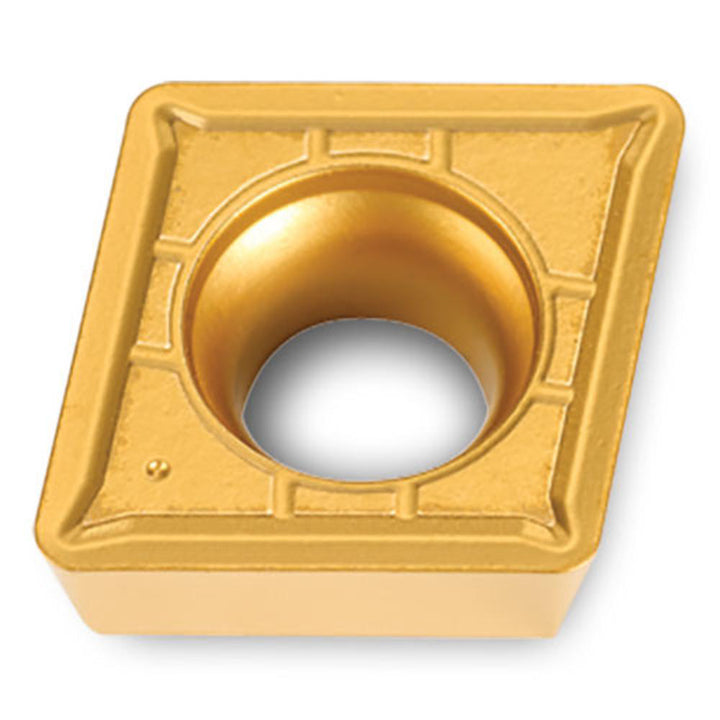

CPMT060204PC TT5100 Solid Carbide Insert, Grade TT5100, TiCN - Ingersoll Cutting Tools 5518158
MFR# 5518158ISO/ANSI# CPMT060204PC TT5100Series CPMT
$13.06List $16.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT5100
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5518158 is a CPMT060204PC TT5100 solid carbide indexable insert, grade TT5100, TiCN coated. Suited for steel.
Specifications
Ansi codeCPMT21.51PCTT5100
Chip breakerPC
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0160
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code21.51
Insert styleCPMT
Insert thickness0.0940
Iso codeCPMT060204PC TT5100
Manufacturer gradeTT5100
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Relief angle11
Tolerance codeM
Width in1/4
Wiper edgeNo
