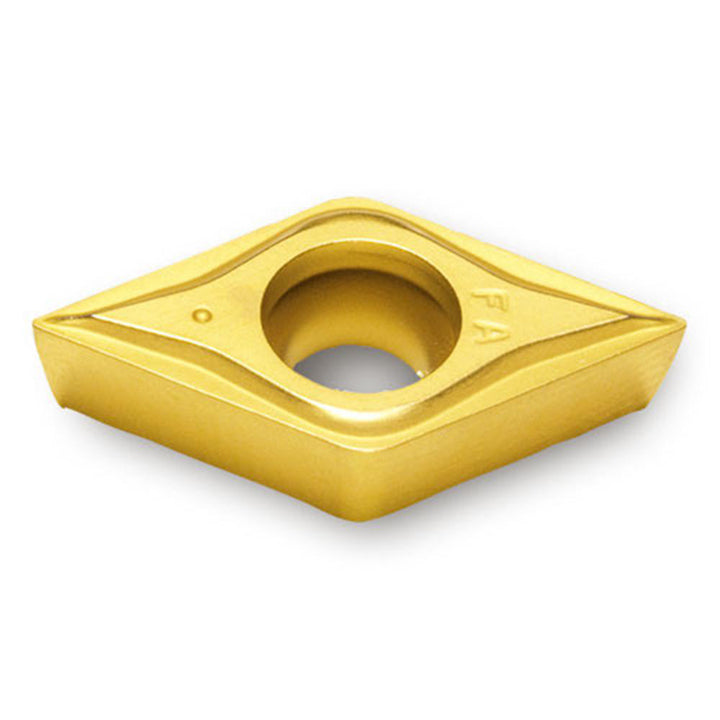

DCMT11T302FA TT9215 Carbide Insert, Grade TT9215, Al2O3 - Ingersoll Cutting Tools 5520465

Ingersoll Cutting Tools

DCMT11T302FA TT9215 Carbide Insert, Grade TT9215, Al2O3 - Ingersoll Cutting Tools 5520465

MFR# 5520465ISO/ANSI# DCMT11T302Series DCMT

$18.83List $24.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeTT9215
MaterialCarbide
CoatingAl2O3

Description

The Ingersoll Cutting Tools 5520465 is a DCMT11T302FA TT9215 carbide indexable insert, grade TT9215, Al2O3 coated. Suited for stainless steel, superalloy, titanium.

Specifications

Ansi insert codeDCMT32.50.5
Ansi size code32.50.5
Chip breakerFA
Chip breaker operationFinishing
Clearance codeC
Coating finishAl2O3
Coating processCVD
Corner radius0.0080
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.50.5
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302FA TT9215
Iso insert codeDCMT11T302
Iso size code11T302
Manufacturer gradeTT9215
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Side clearancePositive
StandardsISO
Tolerance codeM
Wiper edgeNo
