Ingersoll Cutting Tools

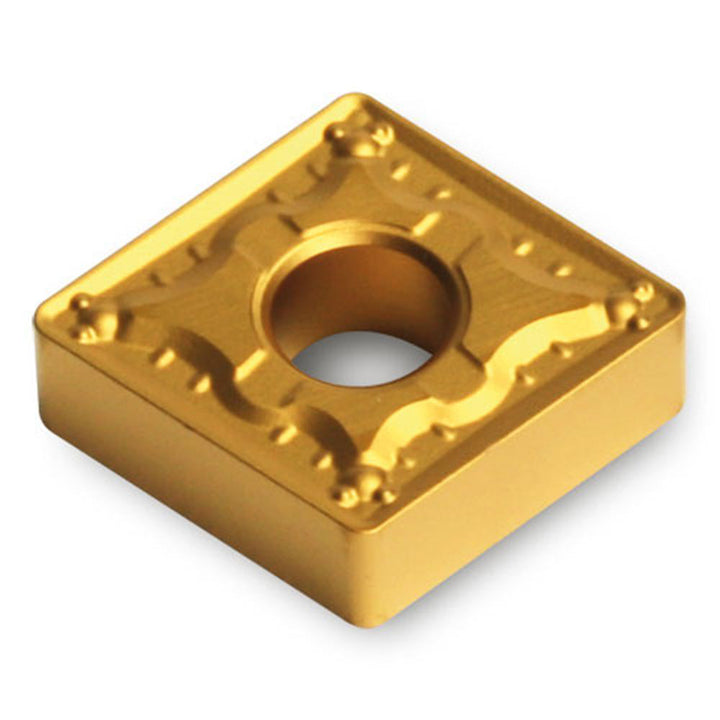

CNMG120404PC TT9235 Carbide Insert, Grade TT9235, Al2O3 - Ingersoll Cutting Tools 5520607
MFR# 5520607ISO/ANSI# CNMG120404Series CNMG
$15.67List $20.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTT9235
MaterialCarbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 5520607 is a CNMG120404PC TT9235 carbide indexable insert, grade TT9235, Al2O3 coated. Suited for stainless steel, superalloy, titanium.
Specifications
Ansi insert codeCNMG431
Ansi size code431
Chip breakerPC
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishAl2O3
Coating processCVD
Corner radius0.0160
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMG
Insert thickness0.1870
Iso codeCNMG120404PC TT9235
Iso insert codeCNMG120404
Iso size code120404
Manufacturer gradeTT9235
Maximum depth of cut0.1960
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in1
Wiper edgeNo
