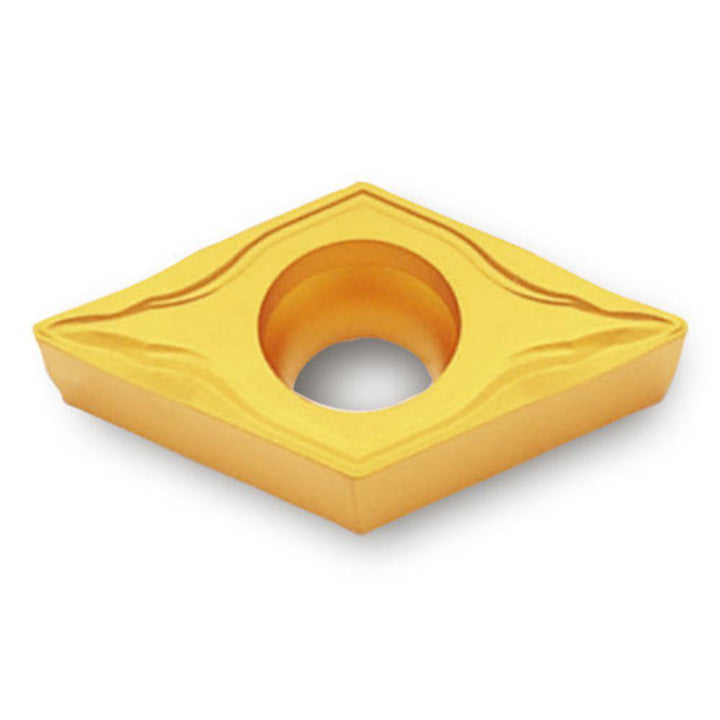

DCMT11T304FG TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523033

Ingersoll Cutting Tools

DCMT11T304FG TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523033

MFR# 5523033ISO/ANSI# DCMT11T304FG TT5080Series DCMT

$18.83List $24.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN

Description

The Ingersoll Cutting Tools 5523033 is a DCMT11T304FG TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.

Specifications

Chip breakerFG
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1730
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4570
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCMT
Insert thickness0.1560
Iso codeDCMT11T304FG TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Tolerance codeM
Wiper edgeNo
