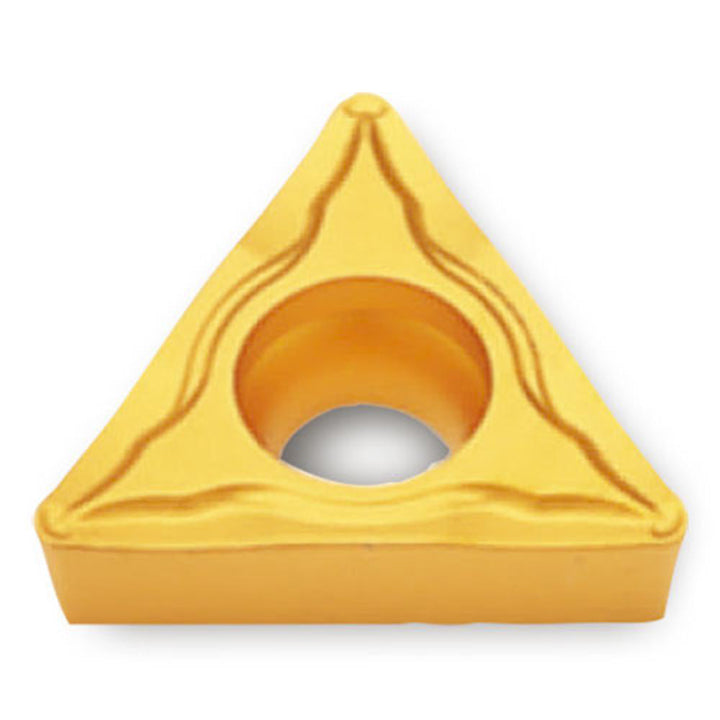

TCMT110204FG TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523040
MFR# 5523040ISO/ANSI# TCMT110204Series TCMT
$12.86List $16.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523040 is a TCMT110204FG TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Ansi insert codeTCMT21.51
Ansi size code21.51
Chip breakerFG
Chip breaker operationFinishing
Clearance codeC
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTCMT
Insert thickness0.0940
Iso codeTCMT110204FG TT5080
Iso insert codeTCMT110204
Iso size code110204
Manufacturer gradeTT5080
Maximum depth of cut0.0590
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle7
Side clearancePositive
Tolerance codeM
Width0.4330
Wiper edgeNo
