Ingersoll Cutting Tools

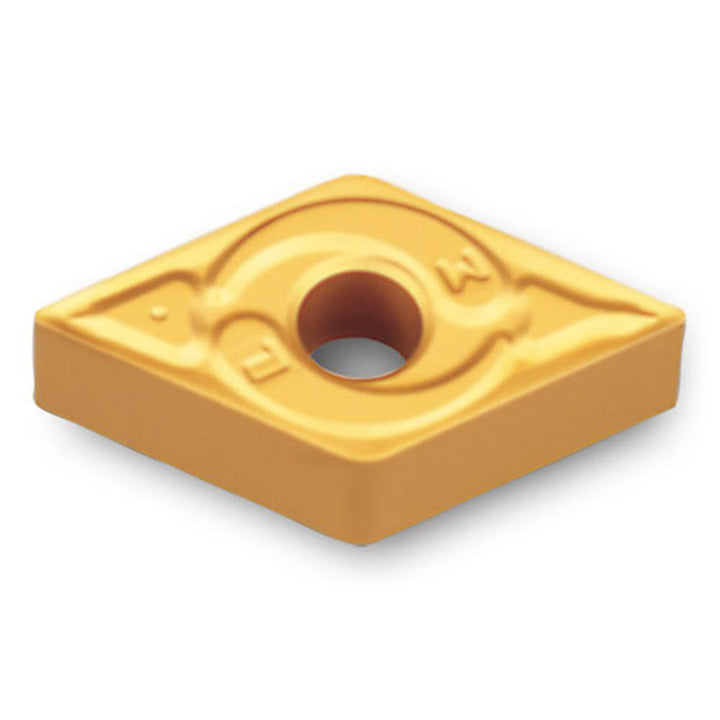

DNMG150408MP TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523059
MFR# 5523059ISO/ANSI# DNMG150408MP TT5080Series DNMG
$21.37List $27.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523059 is a DNMG150408MP TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeDNMG432MPTT5080
Chip breakerMP
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Included angle55.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.6100
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness0.1870
Iso codeDNMG150408MP TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1570
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
