Ingersoll Cutting Tools

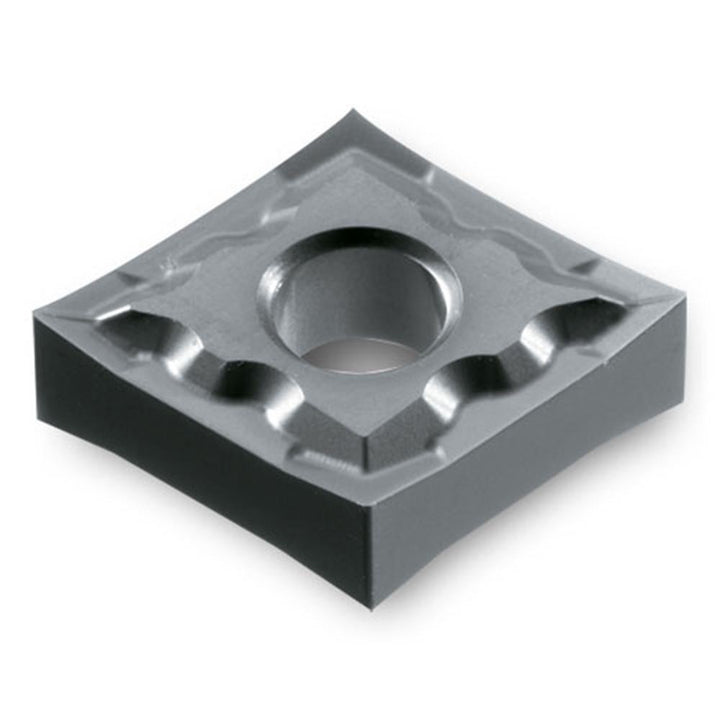

CNGG120402ML TT5080 Solid Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523121
MFR# 5523121ISO/ANSI# CNGG120402ML TT5080Series CNGG
$22.96List $29.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT5080
MaterialSolid Carbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523121 is a CNGG120402ML TT5080 solid carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, super-alloys & titanium.
Specifications
Ansi codeCNGG430.5MLTT5080
Chip breakerML
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0079
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code430.5
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120402ML TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0470
Number of cutting edges4
Primary workpiece materialStainless Steel; Super-alloys & Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeG
Width in1
Wiper edgeNo
