Ingersoll Cutting Tools

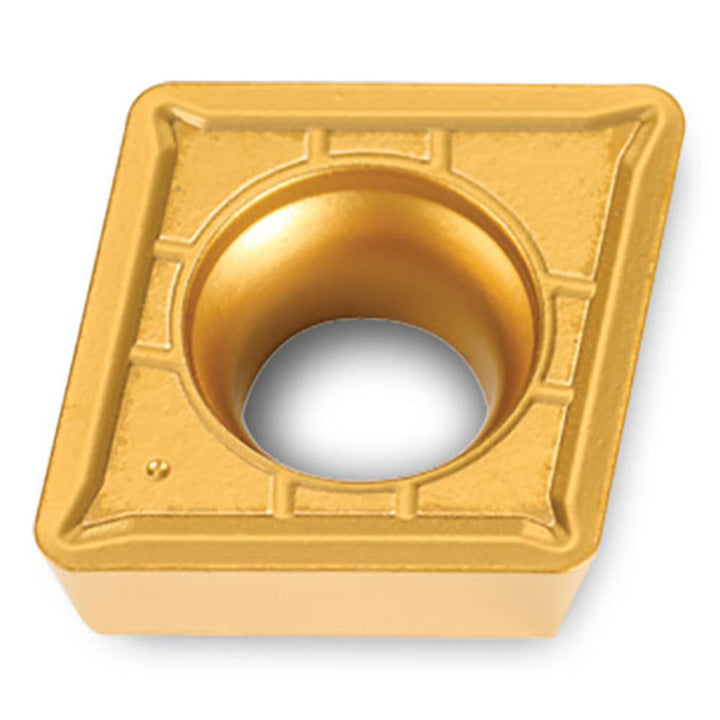

CPMT060204PC TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523145
MFR# 5523145ISO/ANSI# CPMT060204PC TT5080Series CPMT
$13.06List $16.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523145 is a CPMT060204PC TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerPC
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCPMT
Insert thickness0.0940
Iso codeCPMT060204PC TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0790
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle11
Tolerance codeM
Width in1/4
Wiper edgeNo
