Ingersoll Cutting Tools

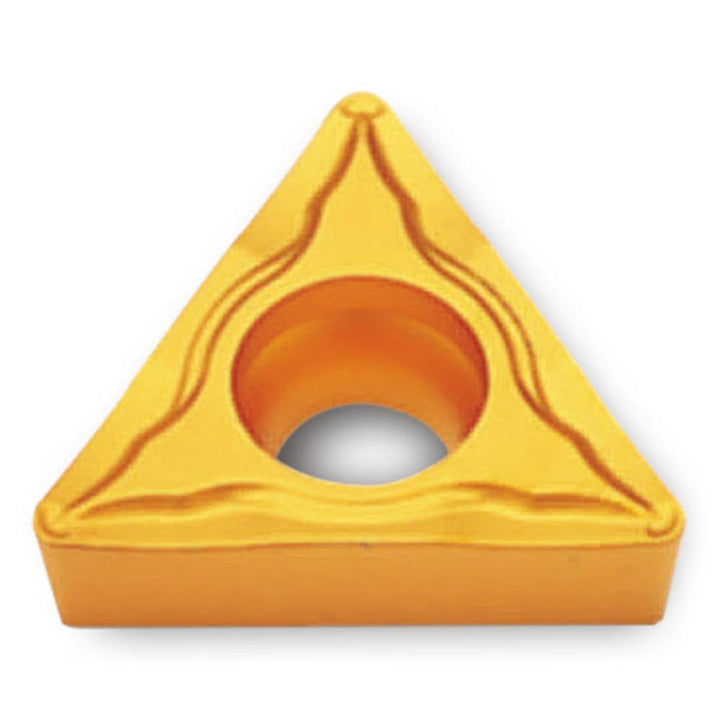

TPMT110204PC TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523149
MFR# 5523149ISO/ANSI# TPMT110204Series TPMT
$13.57List $17.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523149 is a TPMT110204PC TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Ansi insert codeTPMT21.51
Ansi size code21.51
Chip breakerPC
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle60
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.51
Insert styleTPMT
Insert thickness0.0940
Iso codeTPMT110204PC TT5080
Iso insert codeTPMT110204
Iso size code110204
Manufacturer gradeTT5080
Maximum depth of cut0.0980
Number of cutting edges3
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakePositive
Relief angle11
Side clearancePositive
Tolerance codeM
Wiper edgeNo
