Ingersoll Cutting Tools

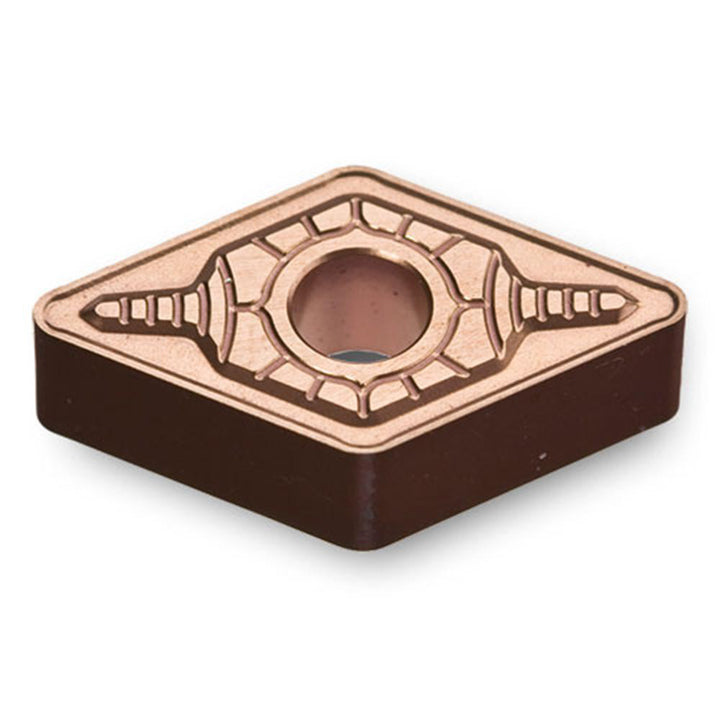

DNMG150408EM TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523181
MFR# 5523181ISO/ANSI# DNMG150408EM TT5080Series DNMG
$21.37List $27.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523181 is a DNMG150408EM TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerEM
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.6100
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408EM TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.1970
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
StandardsISO
Tolerance codeM
Width in1
Wiper edgeNo
