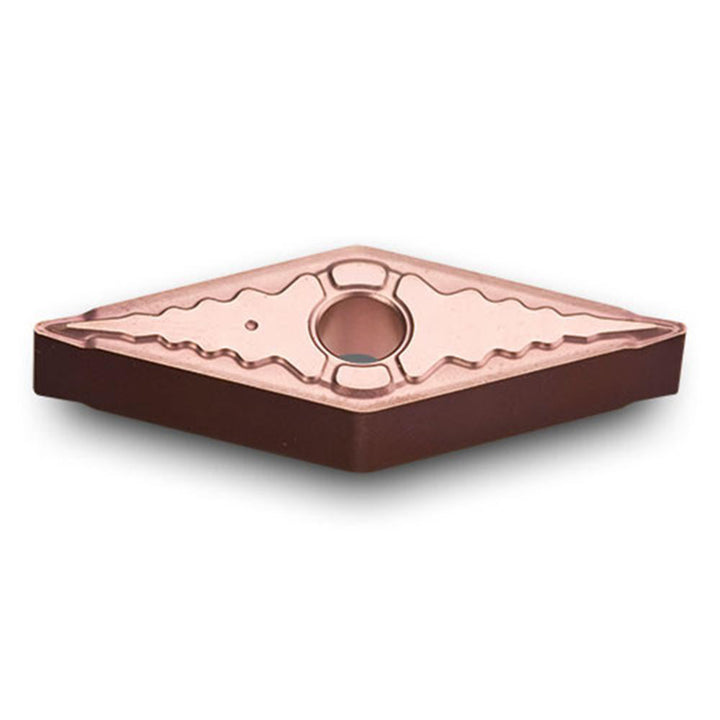

VNMG160404EA TT5080 Carbide Insert, Grade TT5080, AlTiN - Ingersoll Cutting Tools 5523324
MFR# 5523324ISO/ANSI# VNMG160404EA TT5080Series VNMG
$24.76List $31.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeTT5080
MaterialCarbide
CoatingAlTiN
Description
The Ingersoll Cutting Tools 5523324 is a VNMG160404EA TT5080 carbide indexable insert, grade TT5080, AlTiN coated. Suited for stainless steel, superalloy, titanium.
Specifications
Chip breakerEA
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6540
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness0.1870
Iso codeVNMG160404EA TT5080
Manufacturer gradeTT5080
Maximum depth of cut0.0590
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloy; Titanium
RakeNegative
Relief angle0
Tolerance codeM
Width in3/8
Wiper edgeNo
