Ingersoll Cutting Tools

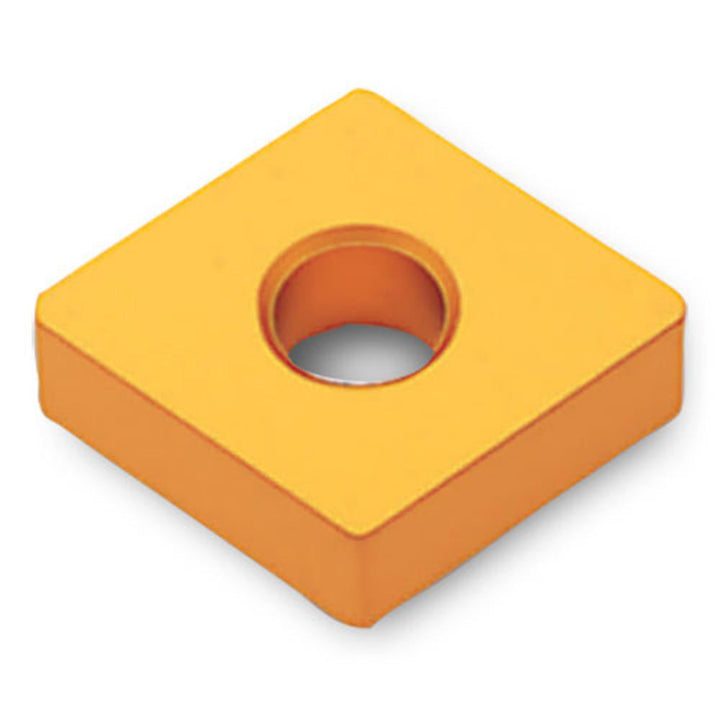

CNMA120408 TT7015 Solid Carbide Insert, Grade TT7015, TiCN - Ingersoll Cutting Tools 5523571
MFR# 5523571ISO/ANSI# CNMA120408 TT7015Series CNMA
$14.27List $18.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT7015
MaterialSolid Carbide
CoatingTiCN
Description
The Ingersoll Cutting Tools 5523571 is a CNMA120408 TT7015 solid carbide indexable insert, grade TT7015, TiCN coated. Suited for cast iron.
Specifications
Ansi codeCNMA432TT7015
Chip breakerA
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code432
Insert styleCNMA
Insert thickness0.1870
Iso codeCNMA120408 TT7015
Manufacturer gradeTT7015
Maximum depth of cut0.2360
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Tolerance codeM
Width in1/2
Wiper edgeNo
