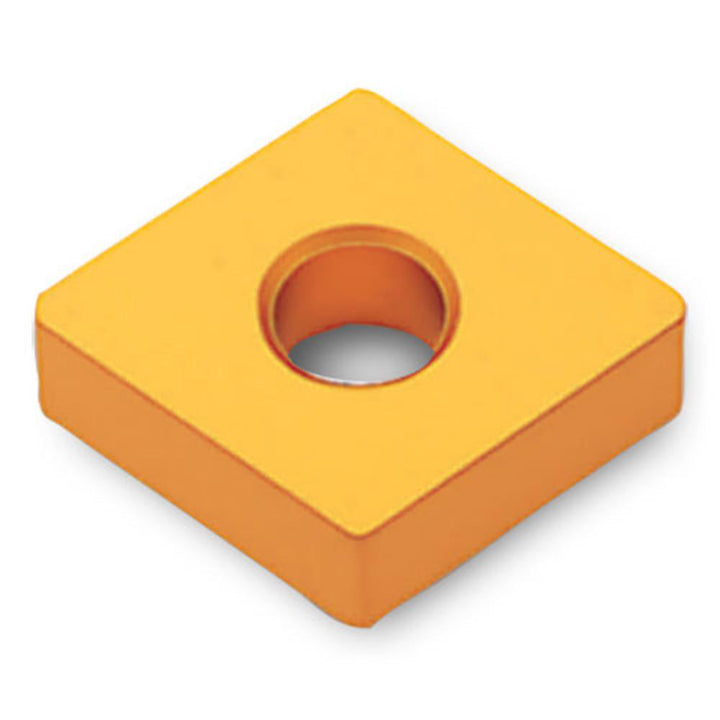

CNMA120404 TT7015 Solid Carbide Insert, Grade TT7015, TiN - Ingersoll Cutting Tools 5523642
MFR# 5523642ISO/ANSI# CNMA120404 TT7015Series CNMA
$14.27List $18.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTT7015
MaterialSolid Carbide
CoatingTiN
Description
The Ingersoll Cutting Tools 5523642 is a CNMA120404 TT7015 solid carbide indexable insert, grade TT7015, TiN coated. Suited for cast iron.
Specifications
Ansi codeCNMA431TT7015
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius0.0160
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5080
Insert materialSolid Carbide
Insert shapeDiamond
Insert size code431
Insert styleCNMA
Insert thickness0.1870
Iso codeCNMA120404 TT7015
Manufacturer gradeTT7015
Maximum depth of cut0.1970
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Relief angle0
Tolerance codeM
Width in1
Wiper edgeNo
