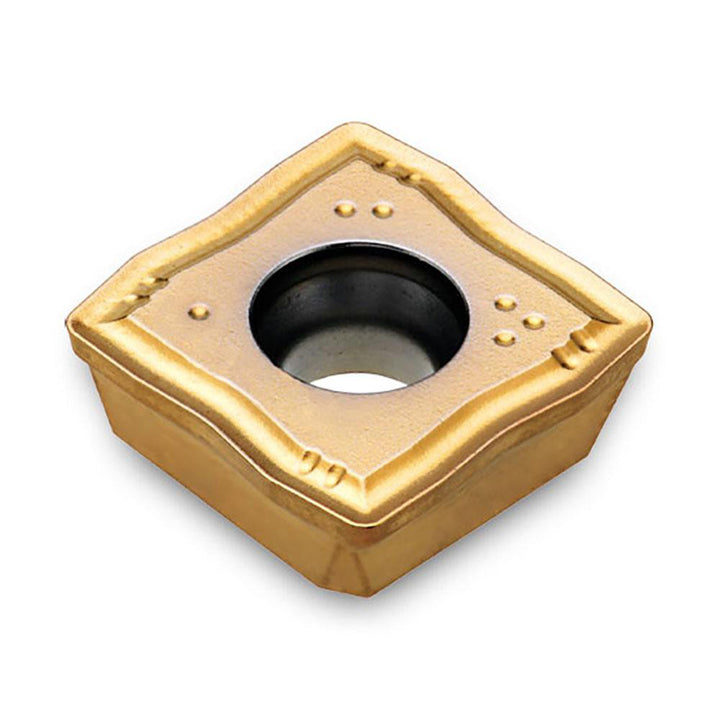

SOMT130408SK IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5524210
MFR# 5524210ISO/ANSI# SOMT130408SK IN2505Series SOMT
$21.57List $27.15
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5524210 is a SOMT130408SK IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeSOMT130408SK IN2505
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityQR
Cutting edge styleChamfered
Included angle degree90
Inscribed circle0.5040
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code130408
Insert styleSOMT
Iso codeSOMT130408SK IN2505
Length0.5040
Length range0.5000 to 0.6000
Manufacturers catalog number5524210
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1830
Thickness range0.1750 to 0.1850
Width0.5040
