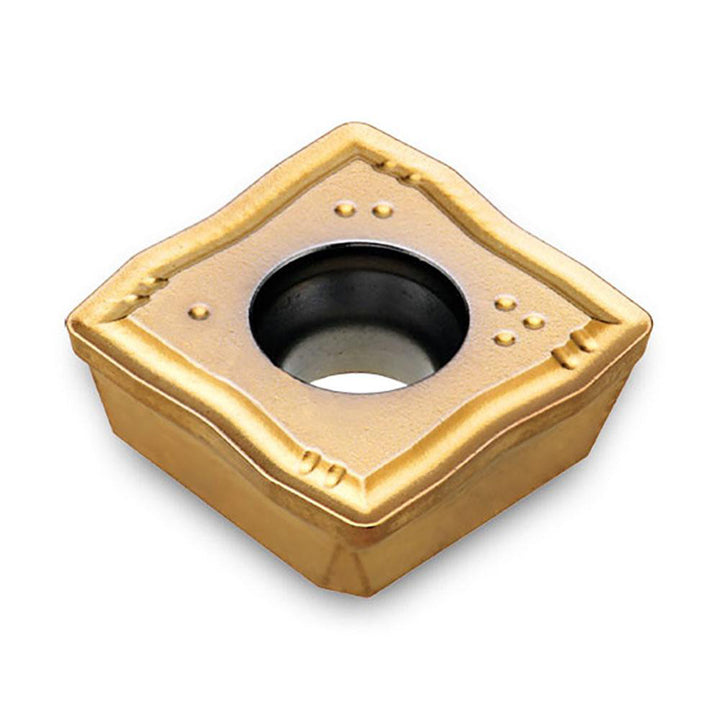

SOMT150510SK IN2505 Solid Carbide Insert, Grade IN2505, TiAlN - Ingersoll Cutting Tools 5524211
MFR# 5524211ISO/ANSI# SOMT150510SK IN2505Series SOMT
$22.60List $28.45
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeIN2505
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5524211 is a SOMT150510SK IN2505 solid carbide indexable insert, grade IN2505, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Ansi codeSOMT150510SK IN2505
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0390
Cutter series compatibilityQR
Cutting edge styleChamfered
Included angle degree90
Inscribed circle0.5900
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code150510
Insert styleSOMT
Iso codeSOMT150510SK IN2505
Length0.5900
Length range0.5000 to 0.6000
Manufacturers catalog number5524211
Manufacturer gradeIN2505
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeMicrograin
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1990
Thickness range0.1850 to 0.2000
Width0.5900
