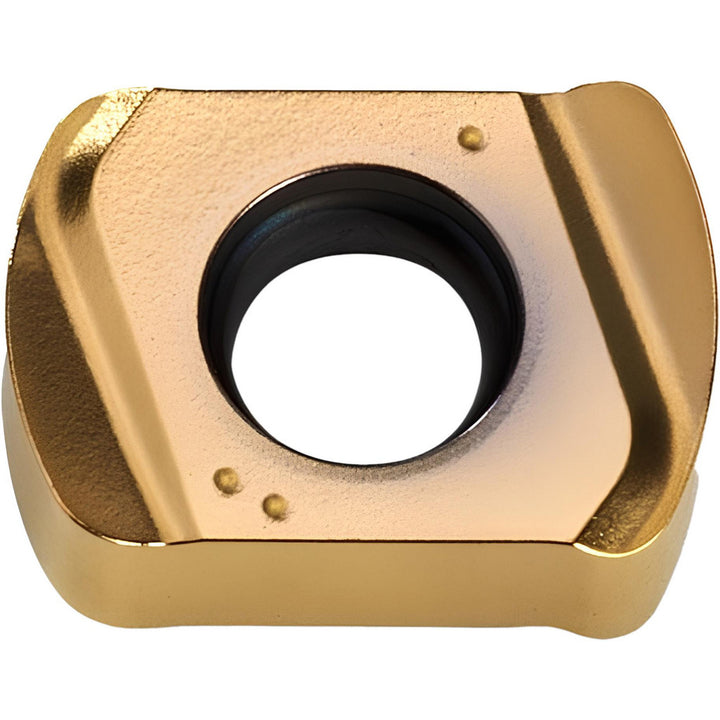

UNLU0603M0TR-ML IN7035 Solid Carbide Insert, Grade IN7035, Al2O3 - Ingersoll Cutting Tools 5616367
MFR# 5616367ISO/ANSI# UNLU0603M0TR-ML IN7035Series UNLU
$23.54List $30.15
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeIrregular
GradeIN7035
MaterialSolid Carbide
CoatingAl2O3
Description
The Ingersoll Cutting Tools 5616367 is a UNLU0603M0TR-ML IN7035 solid carbide indexable insert, grade IN7035, Al2O3 coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi codeUNLU0603M0TR-ML IN7035
Chip breakerML
Coating finishAl2O3
Coating processMTCVD
Corner radius0.0400
Cutter series compatibility1TG1F; TG1F
Cutting edge styleChamfered
Inscribed circle in1/4
Inscribed circle range0.2000 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeIrregular
Insert size06
Insert size code0603
Insert styleUNLU
Iso codeUNLU0603M0TR-ML IN7035
Length0.3540
Length of cut (mm)8.9900
Length range0.3200 to 0.4000
Manufacturers catalog number5616367
Manufacturer gradeIN7035
Material applicationStainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Maximum depth of cut0.3540
Multi use toolNo
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1420
Thickness range0.1250 to 0.1500
Width0.2510
