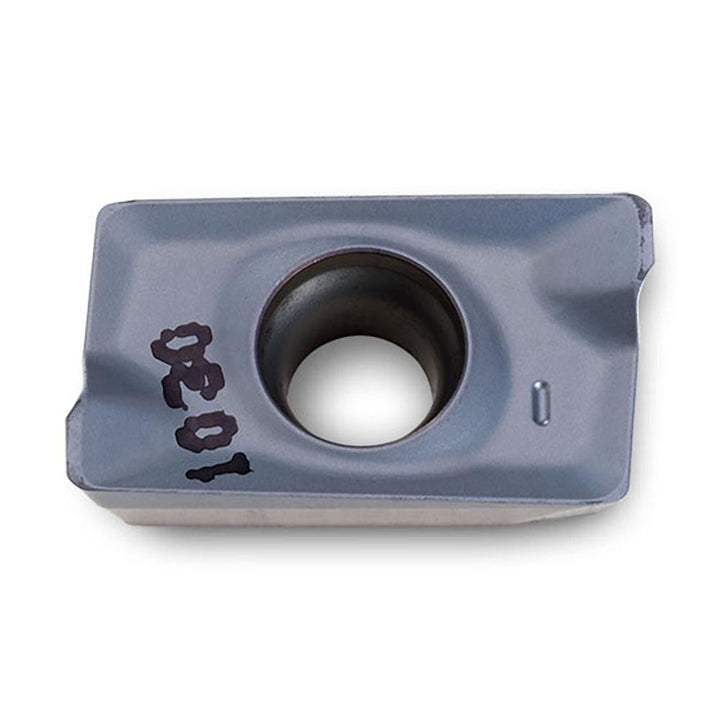

APKT160408R Solid Carbide Insert, Grade IN5015, TiN - Ingersoll Cutting Tools 5800686

Ingersoll Cutting Tools

APKT160408R Solid Carbide Insert, Grade IN5015, TiN - Ingersoll Cutting Tools 5800686

MFR# 5800686ISO/ANSI# APKT160408RSeries APLH

$22.88List $29.30 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIN5015
MaterialSolid Carbide
CoatingTiN

Description

The Ingersoll Cutting Tools 5800686 is a APKT160408R solid carbide indexable insert, grade IN5015, TiN coated. Suited for steel, stainless steel, cast iron, hard material.

Specifications

Ansi codeAPLH53R01 IN5015
Chip breakerNone
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutter series compatibility12J1B; 12N1B; 12S1B; 12T1B; 22J3B; 22J5B; 23J6G; 2J1B
Cutting edge effective length0.6000
Cutting edge styleSharp
Included angle degree85
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size53
Insert size code53
Insert styleAPLH
Iso codeAPKT160408R
Length0.6360
Length range0.6000 to 0.6500
Manufacturers catalog number5800686
Manufacturer gradeIN5015
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2070
Thickness range0.2000 to 0.2200
Width in3/8
