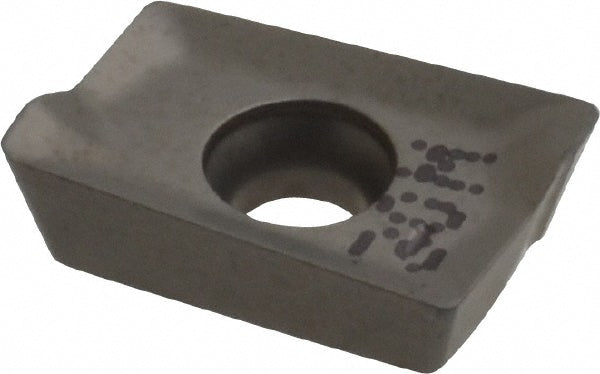

APKT120308R-HS Solid Carbide Insert, Grade IN30M - Ingersoll Cutting Tools 5800696

Ingersoll Cutting Tools

APKT120308R-HS Solid Carbide Insert, Grade IN30M - Ingersoll Cutting Tools 5800696

MFR# 5800696ISO/ANSI# APKT120308R-HSSeries APLV

$19.83List $25.40 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeIN30M
MaterialSolid Carbide

Description

The Ingersoll Cutting Tools 5800696 is a APKT120308R-HS solid carbide indexable insert, grade IN30M. Suited for non-ferrous metal.

Specifications

Ansi codeAPLV42R01 IN30M
Chip breakerHS
Coating processUncoated
Corner radius in1/32
Cutter series compatibility12_1Q; 12J1Q; 12S1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPLV
Iso codeAPKT120308R-HS
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5800696
Manufacturer gradeIN30M
Material applicationNon-Ferrous Metal
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.3120
