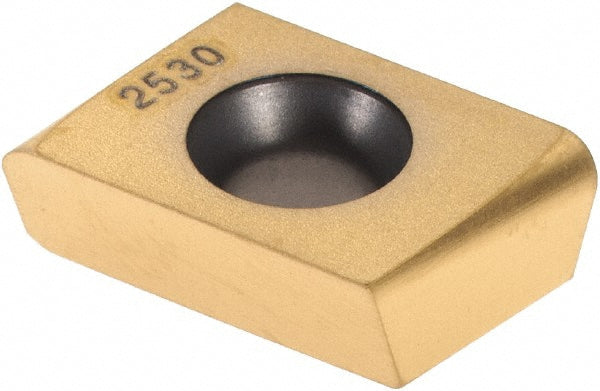

CDE323L022 IN2530 Solid Carbide Insert, Grade IN2530, TiAlN - Ingersoll Cutting Tools 5803902

MFR# 5803902ISO/ANSI# CDE323L022 IN2530Series CDE

$21.44List $27.45 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeIN2530
MaterialSolid Carbide
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5803902 is a CDE323L022 IN2530 solid carbide indexable insert, grade IN2530, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeCDE323L22 J IN2530
Chip breakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0620
Cutter series compatibilityCHU
Cutting edge styleCorner Rounded
Included angle degree80
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size32
Insert size code323
Insert styleCDE
Iso codeCDE323L022 IN2530
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog number5803902
Manufacturer gradeIN2530
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeCoarse Grain
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1880
Thickness range0.1850 to 0.2000
Width in3/8
