Ingersoll Cutting Tools

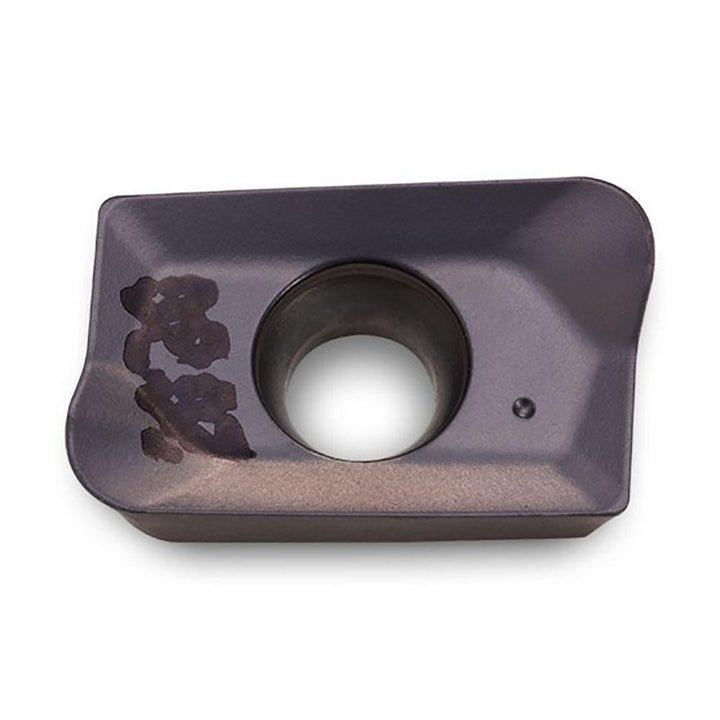

APKT120316R Solid Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5804558
MFR# 5804558ISO/ANSI# APKT120316RSeries APXB
$19.99List $25.60
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeIN2005
MaterialSolid Carbide
CoatingTiAlN
Description
The Ingersoll Cutting Tools 5804558 is a APKT120316R solid carbide indexable insert, grade IN2005, TiAlN coated. Suited for cast iron, stainless steel, steel, superalloys & titanium.
Specifications
Ansi codeAPXB42R02 IN2005
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius0.0620
Cutter series compatibility12_1Q; 12J1Q; 12S1Q; 22J*Q; 22J3Q; 2J1Q
Cutting edge effective length0.4700
Cutting edge styleSharp
Included angle degree85
Inscribed circle0.3120
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size42
Insert size code42
Insert styleAPXB
Iso codeAPKT120316R
Length0.4800
Length range0.4500 to 0.5000
Manufacturers catalog number5804558
Manufacturer gradeIN2005
Material applicationCast Iron; Stainless Steel; Steel; Superalloys & Titanium
Material gradeMicrograin
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron; Stainless Steel; Steel; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1500
Thickness range0.1500 to 0.1750
Width0.3120
