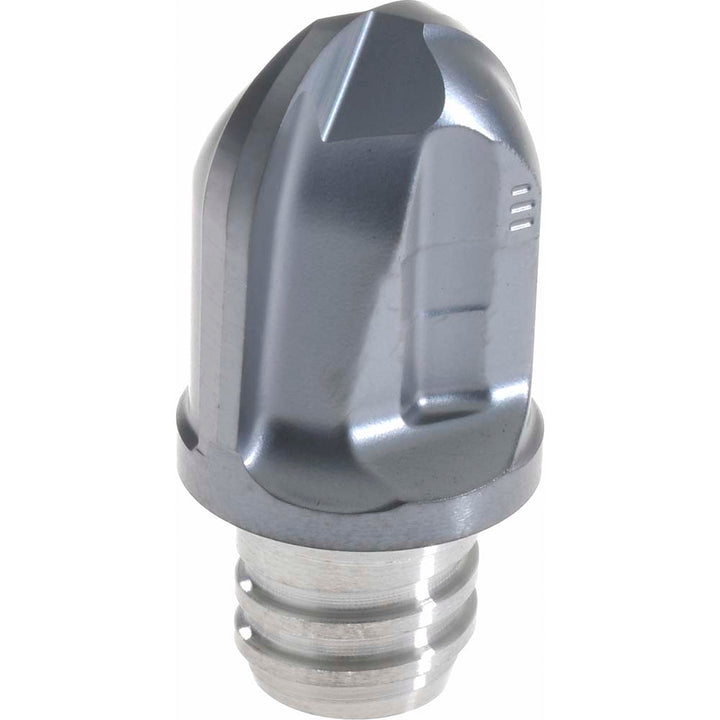

Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5810592

Ingersoll Cutting Tools

Carbide Insert, Grade IN2005, TiAlN - Ingersoll Cutting Tools 5810592

MFR# 5810592Cat# 45B-5050T8RA06 IN2005Series Chip Surfer

$84.72List $105.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
GradeIN2005
CoatingTiAlN

Description

The Ingersoll Cutting Tools 5810592 is a carbide indexable insert, grade IN2005, TiAlN coated. Suited for steel, stainless steel, cast iron, super-alloys & titanium, hard material.

Specifications

ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Coolant throughNo
Corner radius0.2500
Cutting diameter0.5000
Extension from holder in0.6400
Functional length0.6400
Helix angle0
Included angle degree90
Length of cut0.5000
Manufacturers catalog number45B-5050T8RA06 IN2005
Manufacturer gradeIN2005
Maximum depth of cut0.5000
Milling tip full descriptionBall Nose
Milling tip style45B
Milling tip typeBall Nose
Number of flutes2
Overall length0.6400
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Super-alloys & Titanium; Hard Material
Thread sizeT08
Tool materialCarbide
